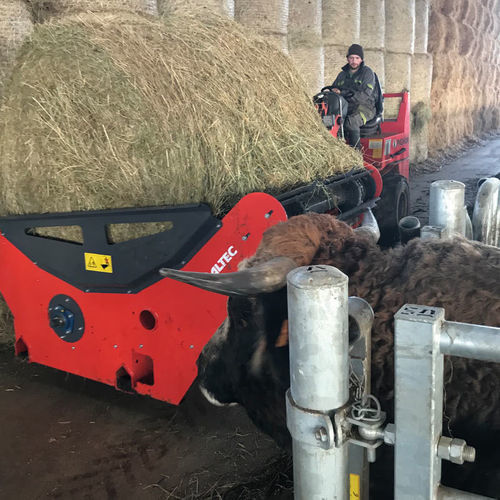

Mounted bale unroller DR 180 PIC

feedinground

Summary
Two-in-one handling and feeding solution for round bales, suitable for front loaders and telehandlers. The unit handles, loads and unrolls bales without changing equipment between handling and feeding operations, improving efficiency on the farm.

Versions

• DR 180 PIC
• DR 180 I PIC

Main functions

• Handling of round bales (spike for lifting and loading)
• Unrolling and distribution of forage
• Drive and locking systems for secure positioning and safe operation
• Left- or right-side distribution possible (option)

Bale spike
Essential accessory for handling round and square bales, fitted with 2 tines 150 cm long, Ø40 mm, with a 90 cm spacing between tines.

Drive and safety
The unroller includes an automatic locking system that secures the unit once lifted, ensuring stable support during handling and unrolling.

Coupling and hitch
Automatic coupling available; the machine can be hitched on one or both sides to enable left or right distribution (optional). Multiple hitch types available as options depending on configuration.

DR 180 I PIC — specific feature
The DR 180 I PIC features an inclinable box that controls bale position inside the unroller and enables complete unrolling down to the core.

Technical specifications (table - DR 180 PIC)
Round bales: Ø 1.80 max
Distribution: Front left
Overall height (mm): 1260
Overall length (mm): 1900
Overall width (mm): 2280
Hydraulic flow required: 40-50 l/min
Tractor power (CV): 100

Options and equipment (DR 180 PIC)
Unladen weight (kg): 750
Loading arm: Optional (manual)
Retractable tines: Optional
Sheeted floor: Optional
Electric control: Optional
3-point hitch: Optional
Telescopic hitch: Optional

Technical specifications (table - DR 180 I PIC)
Round bales: Ø 1.80 max
Distribution: Front left
Overall height (mm): 1260
Overall length (mm): 1900
Overall width (mm): 2280
Hydraulic function: 2 DBL
Hydraulic flow required: 40-50 l/min
Tractor power (CV): 100

Options and equipment (DR 180 I PIC)
Unladen weight (kg): 750
Loading arm: Yes
Retractable tines: Optional
Sheeted floor: Optional
Electric control: Optional
3-point hitch: Yes
Telescopic hitch: Optional

Features / technical data

• Accepted round bales: maximum diameter 1.80 m
• Standard distribution: front left
• Overall height: 1260 mm
• Overall length: 1900 mm
• Overall width: 2280 mm
• Hydraulic flow required: 40-50 l/min
• Recommended tractor power: 100 CV
• Unladen weight: 750 kg
• Bale spike: 2 tines 150 cm, Ø40 mm, spacing 90 cm
• Options: loading arm (manual or fitted depending on version), retractable tines, sheeted floor, electric control, 3-point or telescopic hitches
• DR 180 I PIC: inclinable box for unrolling down to the core
• Left- or right-side distribution available (option)
