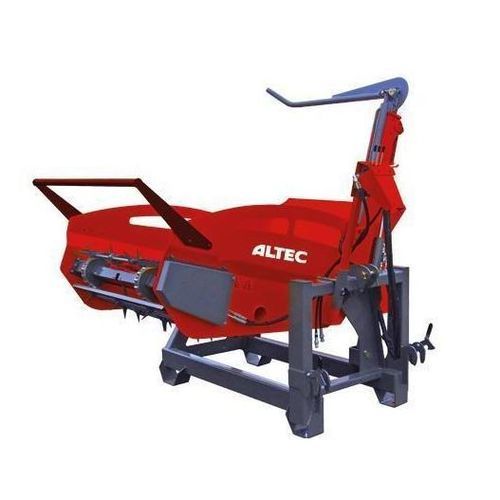

Mounted bale unroller DR 180 I

feedingwith chainround

Overview
A mounted bale unroller for distributing round bales using a tractor or telehandler. Presented models: DR180IM, DR180I, DR180PI. Machines designed for efficient, regular forage distribution with loading, distribution and control options adapted to livestock operations.

DR180IM
Simplicity and reliability: the DR180IM is a mounted unroller that is easy to operate and requires little maintenance. Its tilting body allows autonomous loading of bales and complete unrolling to the core. A manually adjustable loading arm is available as an option to facilitate loading.

• Hydraulically tilting body enabling autonomous loading and complete unrolling to the core.
• Chain-and-slat conveyor: chain tension self-adjusts according to bale weight; equipped with fixed teeth; forward and reverse drive possible.
• Retractable teeth (option) to prevent material returning under the body and ensure uniform unrolling.

Technical data DR180IM
Round bales: Ø 1.80 m max
Distribution: Right
Overall height (mm): 1260
Overall length (mm): 1610
Overall width (mm): 1800
Hydraulic flow required: 40-50 l/min
Tractor power (HP): 100
Unladen weight (kg): 660
Loading arm: Optional (manual)
Retractable teeth: Optional
Sheeted floor: Optional
Electric control: Optional
3-point hitch: Standard
Telescopic hitch: Optional

DR180I
Easy loading, optimal unrolling: the DR180I is fitted with a factory hydraulic loading arm and a tilting body to load and unroll bales quickly. A single tractor is sufficient to pick up and distribute forage, reducing handling.

• Hydraulically tilting body for autonomous loading and unrolling to the core.
• Factory hydraulic loading arm adapting to different bale diameters.
• Retractable teeth available as an option to improve unrolling uniformity.
• Centralized electric control available as an option (ergonomic control box).

Technical data DR180I
Round bales: Ø 1.80 m max
Distribution: Right
Overall height (mm): 2300
Overall length (mm): 1610
Overall width (mm): 1800
Hydraulic function: 1 single-acting circuit
Hydraulic flow required: 40-50 l/min
Tractor power (HP): 100
Unladen weight (kg): 710
Loading arm: Yes (hydraulic, standard)
Retractable teeth: Optional
Sheeted floor: Optional
Electric control: Optional
3-point hitch: Standard
Telescopic hitch: Optional

DR180PI
180° swivel distribution: the DR180PI adapts to building layouts and distributes forage to the right, center or left of the alley as needed. It is swivelable to 180° using a hydraulic motor driving a toothed wheel for smooth, precise rotation.

• 180° rotation via a hydraulic toothed-wheel system for right/left/center distribution.
• Integrated loading arm for simple, fast loading.
• Available options: electric control, hydraulic offset, sheeted floor, retractable teeth.

Technical data DR180PI
Round bales: Ø 1.80 m max
Distribution: 180° (right/center/left)
Overall height (mm): 2300
Overall length (mm): 1610
Overall width (mm): 1800
Hydraulic function: 1 single-acting circuit
Hydraulic flow required: 40-50 l/min
Tractor power (HP): 100
Unladen weight (kg): 880
Loading arm: Yes
Sheeted floor: Optional
Electric control: Optional
3-point hitch: Standard
Telescopic hitch: Optional

Options and accessories

• Loading arm (manual or hydraulic depending on model)
• Retractable teeth (option)
• Sheeted floor (option)
• Centralized electric control (option)
• Hydraulic offset for the hitch frame (allows 50 cm offset to right or left, option)
• Hitches: standard 3-point hitch, telescopic hitch optional

Characteristics / technical specifications

• DR180IM — Round bales Ø 1.80 m max; Distribution: Right; Height: 1260 mm; Length: 1610 mm; Width: 1800 mm; Hydraulic flow: 40-50 l/min; Tractor power: 100 HP; Unladen weight: 660 kg; Options: manual arm, retractable teeth, sheeted floor, electric control, telescopic hitch.
• DR180I — Round bales Ø 1.80 m max; Distribution: Right; Height: 2300 mm; Length: 1610 mm; Width: 1800 mm; Hydraulic function: 1 single-acting circuit; Hydraulic flow: 40-50 l/min; Tractor power: 100 HP; Unladen weight: 710 kg; Equipped with hydraulic loading arm; Options: retractable teeth, sheeted floor, electric control, telescopic hitch.
• DR180PI — Round bales Ø 1.80 m max; Distribution: 180° (right/center/left); Height: 2300 mm; Length: 1610 mm; Width: 1800 mm; Hydraulic function: 1 single-acting circuit; Hydraulic flow: 40-50 l/min; Tractor power: 100 HP; Unladen weight: 880 kg; Equipped with loading arm; Options: electric control, hydraulic offset, retractable teeth, sheeted floor, telescopic hitch.
