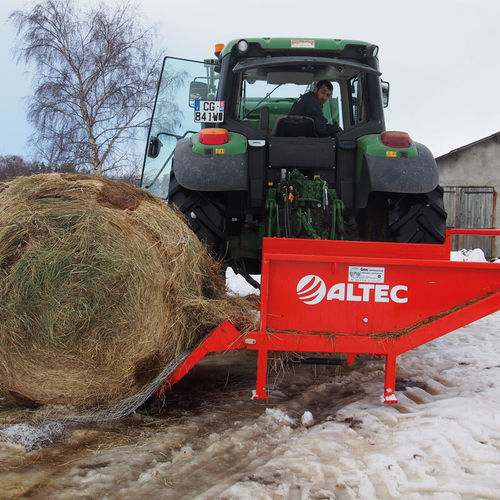

Tractor-mounted bale unroller DR 150 T

feedingwith chainround

Overview
Light solution for unrolling and distributing round bales. Main models presented are DR 150 and DR 150T. The DR 150 has an empty weight under 400 kg and can be used with compact farm handlers and articulated loaders. Its low weight and (optional) hydraulic loading arm allow simple handling and unrolling of round bales. The DR 150 operates with any tractor, including small low-speed units, without using the power take-off (PTO).

Models

• DR 150: light unroller, empty weight 390 kg, designed for simple unrolling with chain-and-slat belt, central or offset hitch, optional loading arm.
• DR 150T: version equipped with driven belt and independent chassis for controlled distribution (metal slat conveyor, adjustable height), empty weight 570 kg.

Key features – DR 150

• Chain-and-slat belt: chain tension adjusts naturally with bale weight; equipped with fixed teeth; belt can be operated forward and reverse.
• Fixed teeth: allow belt operation in both directions to manage bale position.
• Customizable hitch: standard central or offset (30 cm) hitch to adapt machine footprint to buildings and desired distribution.
• Hydraulic loading arm (optional): enables autonomous loading of the round bale into the unroller body.

Key features – DR 150T

• Driven belt: independent chassis for unrolling onto a powered conveyor; distribution possible to the right or left.
• Straight metal slats: belt height adjustable in 3 positions (40 to 52 cm from the ground) to adapt distribution height.
• Ground controls: machine fitted as standard with a hydraulic distributor and flow regulator to operate functions from ground level.
• Controlled distribution: designed for left or right distribution; suitable for tractors, compact farm handlers and articulated loaders.

Applications
Unrolling and distributing round bales (straw, hay, wrapped) on farms and agricultural operations; use with small tractors and loaders; light solution for daily handling and feeding tasks.

Technical characteristics / specifications

• DR 150 — Round bales (mm): Ø 150 max; Loading arm: Optional; Distribution: Rear or front-left; Overall height (mm): 1000 without arm / 1900 with arm; Overall length (mm): 2000; Overall width (mm): 1710; Hydraulic function: 1 DE (double-acting); Oil flow required: 40-50 l/min; Tractor power: 60 CV; Empty weight (kg): 390.
• DR 150T — Round bales (mm): Ø 150 max; Distribution: Right or left; Overall height (mm): 1600; Overall length (mm): 2500; Overall width (mm): 2300; Hydraulic function: 1 DE (double-acting); Oil flow required: 40-50 l/min; Tractor power: 60 CV; Empty weight (kg): 570.
