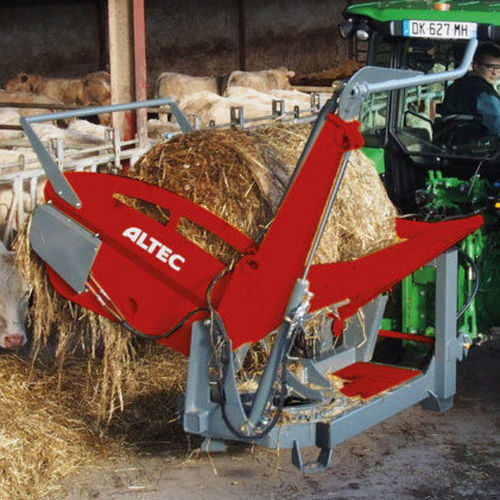

Mounted bale unroller DR180 IM

feedingwith chainround

Overview
A range of mounted bale unrollers (DR180IM / DR180I / DR180PI) designed for distributing round bales. Installable on front loaders or telehandlers. Reliable and easy to operate machines suited to forage distribution and bale handling.

Mounted unroller DR180IM
Simplicity and durability: a mounted unroller intended for daily use with low maintenance. Tilting body enables full unrolling to the core. Option: manually adjustable loading arm.

• Hydraulically tilting body for autonomous loading and bale position control
• Chain conveyor with slats: tension adjustable according to bale weight, reversible operation, fitted with fixed teeth
• Retractable teeth: prevent product return under the body and ensure consistent, efficient unrolling (option)

DR180IM technical specifications
Round bales: Ø 1.80 m max
Distribution: Right
Overall height (mm): 1260
Overall length (mm): 1610
Overall width (mm): 1800
Required hydraulic flow (l/min): 40-50
Tractor power (hp): 100

DR180IM options / equipment
Unladen weight (kg): 660
Loading arm: Optional (manual)
Retractable teeth: Optional
Sheeted floor: Optional
Electric control: Optional
3-point hitch: Standard
Telescopic hitch: Optional

Mounted unroller DR180I
Easier loading and optimal unrolling: equipped with a hydraulically adjustable loading arm and a tilting body for fast loading and unrolling with a single tractor. Reduces handling and saves time.

• Hydraulically tilting body for autonomous loading
• Hydraulic loading arm as standard, adapts to different bale diameters
• Retractable teeth (option)
• Centralized electric control (option)
• Hydraulic offset available (option)

DR180I technical specifications
Round bales: Ø 1.80 m max
Distribution: Right
Overall height (mm): 2300
Overall length (mm): 1610
Overall width (mm): 1800
Hydraulic function: 1 single-acting circuit
Required hydraulic flow (l/min): 40-50
Tractor power (hp): 100

DR180I options / equipment
Unladen weight (kg): 710
Loading arm: Yes (hydraulic, standard)
Retractable teeth: Optional
Sheeted floor: Optional
Electric control: Optional
3-point hitch: Standard
Telescopic hitch: Optional

Mounted unroller DR180PI
Orientable distribution: the DR180PI allows discharge to the right, center or left of the feeding alley with 180° orientation. Hydraulic motor drives a gearwheel for smooth rotation. A versatile solution adapted to barn configurations.

• 180° rotation via hydraulic gearwheel system to distribute right, left or center
• Centralized electric control (option)
• Hydraulic offset available (option)
• Loading arm: yes

DR180PI technical specifications
Round bales: Ø 1.80 m max
Distribution: 180°
Overall height (mm): 2300
Overall length (mm): 1610
Overall width (mm): 1800
Hydraulic function: 1 single-acting circuit
Required hydraulic flow (l/min): 40-50
Tractor power (hp): 100

Characteristics / technical specifications

• DR180IM: Round bales Ø 1.80 m max; Distribution right; Ht 1260 mm; Lg 1610 mm; W 1800 mm; Hydraulic flow 40-50 l/min; Tractor power 100 hp; Unladen weight 660 kg; 3-point hitch standard; Loading arm optional (manual); Retractable teeth optional; Sheeted floor optional; Electric control optional; Telescopic hitch optional.
• DR180I: Round bales Ø 1.80 m max; Distribution right; Ht 2300 mm; Lg 1610 mm; W 1800 mm; Hydraulic function 1 single-acting circuit; Hydraulic flow 40-50 l/min; Tractor power 100 hp; Unladen weight 710 kg; Hydraulic loading arm standard; Retractable teeth optional; Sheeted floor optional; Electric control optional; 3-point hitch standard; Telescopic hitch optional.
• DR180PI: Round bales Ø 1.80 m max; Distribution 180° (orientable); Ht 2300 mm; Lg 1610 mm; W 1800 mm; Hydraulic function 1 single-acting circuit; Hydraulic flow 40-50 l/min; Tractor power 100 hp; Unladen weight 880 kg; Loading arm present; Sheeted floor optional; Electric control optional; 3-point hitch standard; Telescopic hitch optional.
