Mounted bale unroller DR 180 PI

feedingwith chainround

Overview
A mounted bale unroller designed to distribute round bales from a front loader or telehandler. The DR180 range includes models DR180IM, DR180I and DR180PI, engineered for efficient and consistent forage distribution with loading and orientation options suited to livestock buildings.

DR180IM mounted unroller
Simple and low-maintenance solution for daily use. The tilting bed enables autonomous bale loading and controls bale position inside the unroller to achieve complete unrolling to the core. A manually adjustable loading arm is available as an option to ease loading.

Key features

• Hydraulic tilting bed: allows autonomous loading and full unrolling to the core.
• Chain-and-slat conveyor: chain tension adapts to bale weight; fitted with fixed tines; forward and reverse operation.
• Retractable tines (option): prevent product return beneath the bed for even unrolling.
• Available options: manual loading arm, sheet-metal floor, electric control, telescopic hitch.

Specifications (DR180IM)
Round bales: Ø 1.80 m max
Distribution: Right
Overall height (mm): 1260
Overall length (mm): 1610
Overall width (mm): 1800
Hydraulic flow required: 40-50 L/min
Tractor power (HP): 100
Unladen weight (kg): 660
3-point hitch: Standard

DR180I mounted unroller
Easy loading and optimal unrolling. Equipped with a hydraulic loading arm as standard and a tilting bed, it allows a single tractor to pick up and distribute bales quickly, reducing handling and working time.

Key features

• Hydraulic tilting bed for autonomous loading and full unrolling.
• Hydraulic loading arm as standard, adaptable to different bale diameters.
• Retractable tines (option).
• Electric control (option): centralises functions in an ergonomic unit.
• Hydraulic offset (option) for elevated trough distribution and telehandler use.

Specifications (DR180I)
Round bales: Ø 1.80 m max
Distribution: Right
Overall height (mm): 2300
Overall length (mm): 1610
Overall width (mm): 1800
Hydraulic function: 1 single-acting circuit
Hydraulic flow required: 40-50 L/min
Tractor power (HP): 100
Unladen weight (kg): 710
Loading arm: Yes (hydraulic, standard)
3-point hitch: Standard

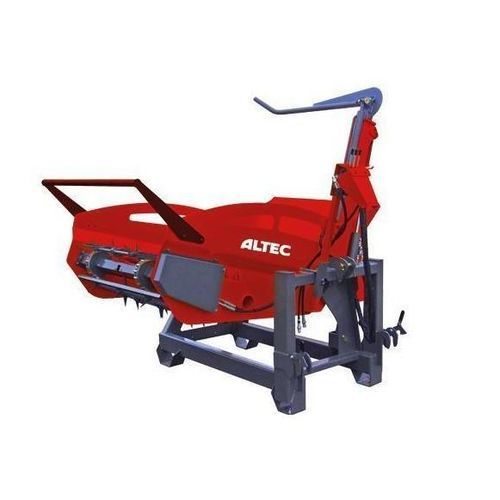

DR180PI mounted unroller
180° swivel version to adapt to building layouts and distribute forage to the right, centre or left of the aisle. Orientation is driven by a hydraulic motor with a gear wheel for smooth rotation, enabling versatile distribution according to farm requirements.

Key features

• 180° swivel via hydraulic gear-wheel system for right/centre/left distribution.
• Hydraulic loading arm as standard.
• Electric control (option) and hydraulic offset (option).

Specifications (DR180PI)
Round bales: Ø 1.80 m max
Distribution: 180° (orientable right / centre / left)
Overall height (mm): 2300
Overall length (mm): 1610
Overall width (mm): 1800
Hydraulic function: 1 single-acting circuit
Hydraulic flow required: 40-50 L/min
Tractor power (HP): 100
Unladen weight (kg): 880
Loading arm: Yes (hydraulic, standard)
3-point hitch: Standard

Technical characteristics / specifications

• Range prefix: DR180 (models DR180IM, DR180I, DR180PI).
• Suitable for round bales up to Ø 1.80 m.
• Required hydraulic flow: 40-50 L/min.
• Recommended tractor power: 100 HP.
• Standard 3-point hitch; telescopic hitch optional.
• Common options: retractable tines, sheet-metal floor, electric control, loading arm (manual on DR180IM; hydraulic standard on DR180I and DR180PI), hydraulic offset.
• Overall heights vary by model: 1260 mm (DR180IM) or 2300 mm (DR180I and DR180PI).
