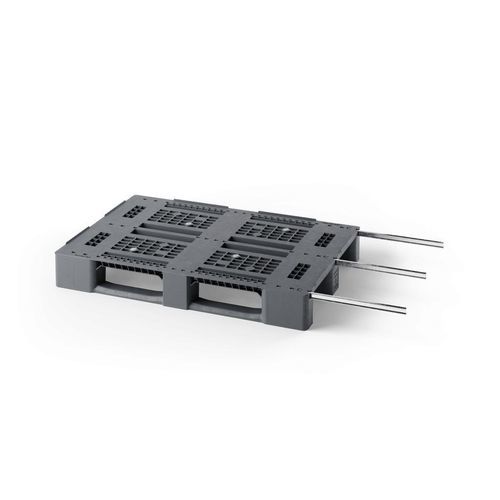

Plastic pallet Eco E5.2 (OD-3R-3M)

transportstoragehandling

Overview
The Eco E5.2 is a monoblock plastic pallet (1200 x 800 x 150 mm) engineered for logistics operations. The OD-3R-3M version integrates a metal reinforcement to improve bending behaviour and impact resistance. The pallet is reusable, produced from recycled plastic and includes a protected RFID pocket for tracking.

Key features

• Metal reinforcement for improved bending behaviour and enhanced impact resistance
• Monoblock design offering a favourable weight/load ratio for closed-loop and export applications
• Rounded corners to reduce forklift damage
• Protected RFID pocket for label placement and traceability
• Reusable construction using recycled PE; compatible with Eco 5 and Eco 7 families
• Suitable for roller conveyors and high-rack storage

Versions

• OD-3R-3M — with metal reinforcement
• OD-3R — variant without the additional metal reinforcement

Technical specifications

• Product name: Eco E5.2 (OD-3R-3M / OD-3R)
• Entry/access: 6 ways
• Nesting height: not specified
• Safety rim: 7 / 22 mm
• Bottom support: 3run
• Upper deck: open
• Dimensions (mm): 1200 x 800 x 150
• Load capacity — Static: 4000 kg
• Load capacity — Dynamic: 2000 kg
• Racking capacity: 1250 kg (OD-3R-3M) / 500 kg (OD-3R)
• Weight (PE): 15.5 kg (OD-3R-3M) / 12.5 kg (OD-3R)
• PE mix: 16 (OD-3R-3M) / 13 (OD-3R)
• Standard truck (EU) — stack: 16 units
• Mega/Jumbo truck stack examples: 19 units
