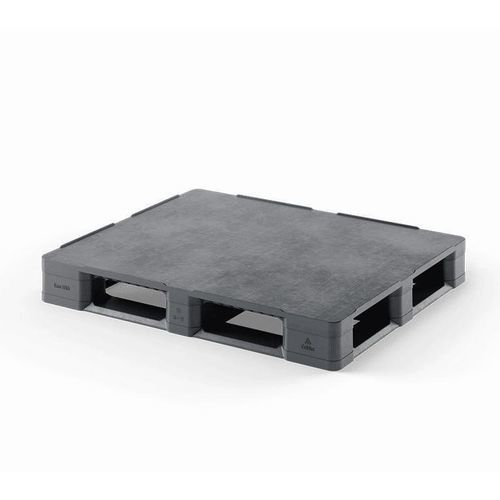

Plastic pallet Eco US5 (CD-6R-M)

transportstoragehandling

The Eco US5 (CD-6R-M) rackable pallet is a universal multi-trip pallet designed for closed circuits, production plants and goods distribution. It is optimized for high rack use, offering high impact resistance and extended service life thanks to its reinforced structure.

Uses and key benefits

• Rackable, multi-trip design for closed circuits and internal logistics.
• High impact resistance to reduce damage risk and extend service life.
• Additional metal reinforcement for improved stiffness and load performance.
• Manufactured from recycled plastic and 100% recyclable.

Available versions

• Eco US5 (CD-6R-M)
• Eco US5 (OD-3R)
• Eco US5 (OD-6R)
• Eco US5 (OD-3R-M)
• Eco US5 (OD-6R-M)
• Eco US5 (CD-3R)
• Eco US5 (CD-6R)

Characteristics / technical specifications

• Commercial name: Eco US5
• Version shown: CD-6R-M
• Dimensions (mm): 1219 x 1016 x 155
• Material: Polypropylene (PP) — produced from recycled plastic; 100% recyclable
• Bottom support: 6-run
• Entry: 4 ways
• Safety rim: 6 mm
• Upper deck: closed
• Weight (PP): 24.5 kg
• Load capacity - STATIC: 5100 kg
• Load capacity - DYNAMIC: 2500 kg
• Racking capacity: 1250 kg
• Reinforcement: additional metal reinforcement integrated
