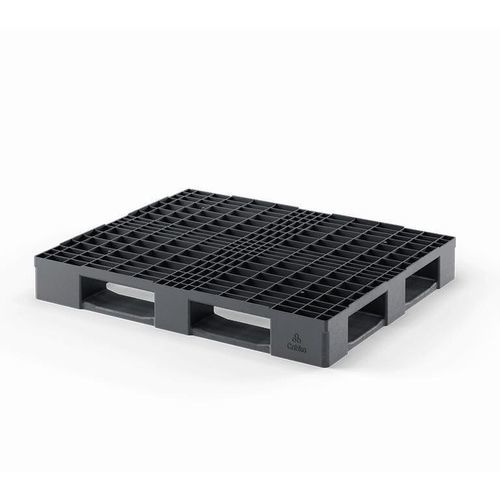

Plastic pallet Eco i5 (OD-5R)

transportstoragehandling

Overview

The Eco i5 (OD-5R) is a rackable monoblock plastic pallet with five runners, designed for distribution, closed-loop logistics, production and export. Manufactured from recycled plastic, it is reusable and 100% recyclable.

Key features

• Rackable pallet with five runners (OD-5R) and monoblock construction for efficient weight/load performance.
• Flow‑through block design enabling easy cleaning and rapid drying.
• Rounded corners to reduce damage from fork access.
• Suitable for roller conveyors and high-rack storage; four-way forklift entry.

Available versions

• Eco i5 (OD-5R) — 5 runners (5run), dynamic capacity 1750 kg, racking capacity 600 kg.
• Eco i5 (OD-3R) — 3 runners (3run), dynamic capacity 1500 kg, racking capacity 300 kg.

Documentation

• Product data sheet OD-5R (PDF).
• Product data sheet OD-3R (PDF).

Technical specifications

• Product name: Eco i5 (OD-5R)
• Model: Eco i5
• Variant: OD-5R / OD-3R
• Bottom support: 5run (OD-5R) / 3run (OD-3R)
• Upper deck: open
• Dimensions (mm): 1200 x 1000 x 150
• Fork entry: 4 ways
• Nesting height: - mm (not specified)
• Safety rim: 6.5 mm
• Load capacity (static): 4000 kg
• Load capacity (dynamic): 1750 kg (OD-5R) / 1500 kg (OD-3R)
• Racking capacity: 600 kg (OD-5R) / 300 kg (OD-3R)
• Weight (PE): 13.5 kg (OD-5R) / 12.5 kg (OD-3R)
• PE MIX: 13.5 kg (OD-5R) / 12.5 kg (OD-3R)
• PP MIX: 14.5 kg (OD-5R) / 13.5 kg (OD-3R)
• Material: recycled plastic, reusable, 100% recyclable
