Plastic pallet Eco US5 (OD-3R-M)

transportstoragehandling

Overview

Overview

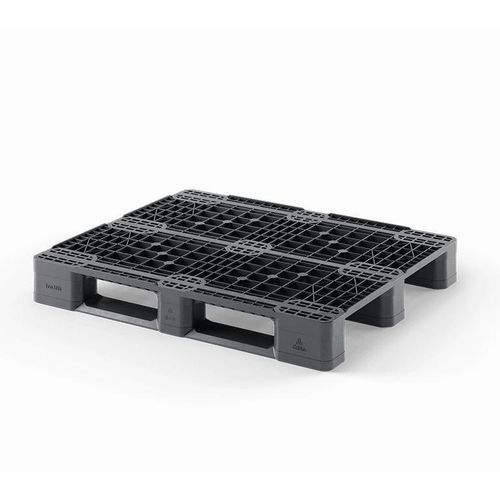

The Eco US5 (OD-3R-M) is a rackable, multi‑trip plastic pallet (1219 x 1016 x 155 mm) with three runners and additional metal reinforcement. It is intended for closed circuits, production sites and goods distribution, offering smooth conveyor performance, excellent stacking stability and high impact resistance for extended service life.

Features

• Rackable design with three runners and metal reinforcements
• Designed for multi‑trip use in closed circuits, production plants and distribution
• Smooth run on roller and chain conveyors
• Excellent block stacking stability and suitable for high‑rack storage
• High impact strength to reduce damage risk and extend service life
• Manufactured from recycled plastic; 100% recyclable

Variants

• Eco US5 (OD-3R-M) — version shown on this page
• Eco US5 (OD-3R)
• Eco US5 (OD-6R)
• Eco US5 (OD-6R-M)
• Eco US5 (CD-3R)
• Eco US5 (CD-6R)
• Eco US5 (CD-6R-M)

Technical specifications

• Model/version: Eco US5 (OD-3R-M)
• Dimensions (L x W x H): 1219 x 1016 x 155 mm
• Entry: 4 ways
• Bottom support: 3 runners
• Upper deck: open
• Weight (PP): 20.5 kg
• Static load capacity: 5100 kg
• Dynamic load capacity: 2500 kg
• Racking capacity: 1250 kg
• Safety rim: 6 mm
• Nesting height: - mm (not specified)
• Material: PP (polypropylene) with additional metal reinforcement
