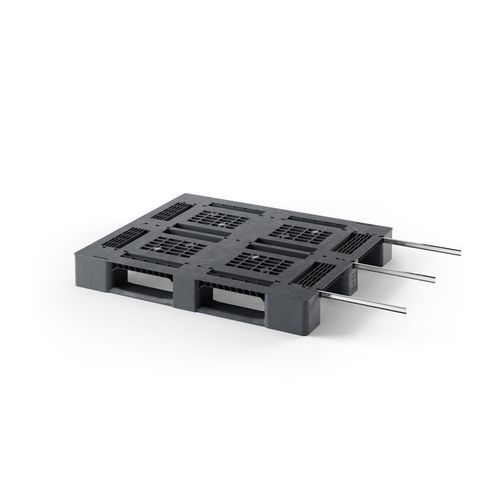

Plastic pallet Eco i5.2 (OD-3R-3M)

transportstoragehandling

Overview
The Eco i5.2 (OD-3R-3M) is a reusable monoblock plastic pallet designed for industrial logistics applications. It combines a lightweight, high-load design with a metal reinforcement in this variant to improve bending behaviour while maintaining high impact resistance and long service life. The pallet is suitable for closed-loop operations, export and automated handling systems.

Key features and benefits

• Monoblock construction for an efficient weight-to-load ratio and high reliability.
• Metal reinforcement (OD-3R-3M) to improve bending behaviour and impact resistance.
• Rounded corners to reduce fork damage and improve handling durability.
• Protected RFID pocket for secure tracking and identification.
• Compatible with Eco i5 and Eco i7 pallet families.
• Designed for roller conveyors and high-rack storage.
• Manufactured from recycled PE to support sustainability objectives.

Versions available (examples)

• Eco i5.2 (OD-3R-3M) — metal-reinforced version (this page).
• Eco i5.2 (OD-3R)
• Eco i5.2 (OD-5R)
• Eco i5.2 (OD-5R-3M)

Technical specifications

• Product name: Eco i5.2 (OD-3R-3M)
• Model / series: Eco i5.2
• Entry: 4 ways
• Nesting height: - mm (not specified)
• Safety rim: 7 / 22 mm
• Bottom support: 3run
• Upper deck: open
• Dimensions (mm): 1200 x 1000 x 150
• Load capacity - Static: 4000 kg
• Load capacity - Dynamic: 2000 kg
• Racking capacity: 1250 kg
• Weight (PE): 18 kg
• PE mix: 18.5 kg
• Material: recycled plastic (PE)
• Special feature (OD-3R-3M): metal reinforcement for improved bending behaviour and enhanced impact resistance
