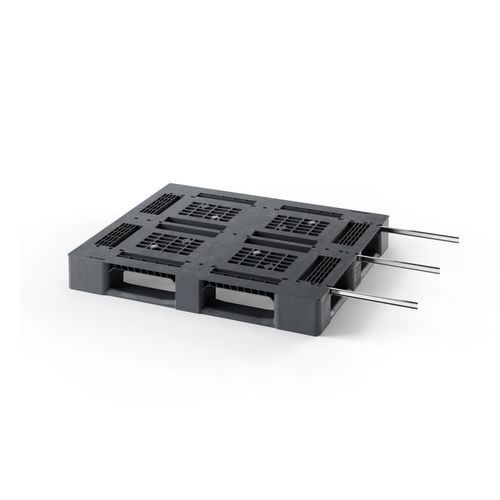

Plastic pallet Eco i5.2 (OD-5R-3M)

transportstoragehandling

Overview

The Eco i5.2 (OD-5R-3M) is a monoblock industrial plastic pallet engineered for logistics environments that require controlled bending behaviour, impact resistance and efficient handling. The OD-5R-3M variant features metal reinforcement and a protected RFID pocket for traceability. It is reusable and manufactured from recycled PE, compatible with the Eco i5 and Eco i7 ranges.

Key features

• Metal reinforcement improving bending behaviour and impact resistance without significantly increasing weight
• Monoblock construction suited to closed-loop systems and export transport
• Rounded corners to minimise fork damage
• Protected RFID pocket with embedded label for simple tracking and identification
• Reusable, made from recycled PE and compatible with roller conveyors and high-rack storage

Applications

• Roller conveyors
• High-rack storage
• Closed-loop logistics and export
• General warehouse handling and transport

Technical specifications

• Product name: Eco i5.2 (OD-5R-3M)
• Model: Eco i5.2
• Entry: 4 ways
• Bottom support: 5-run
• Upper deck: open
• Safety rim: 7 / 22 mm
• Nesting height: - mm (not specified)
• Dimensions (mm): 1200 x 1000 x 150
• Static load capacity: 4000 Kg
• Dynamic load capacity: 2000 Kg
• Racking capacity: 1250 Kg
• Weight (PE): 19 Kg
• PE mix: 19.5 Kg
• Material: recycled plastic (PE) with metal reinforcement
• Protected RFID pocket: yes
• Designed for: roller conveyors, high racks, export and closed-loop logistics
