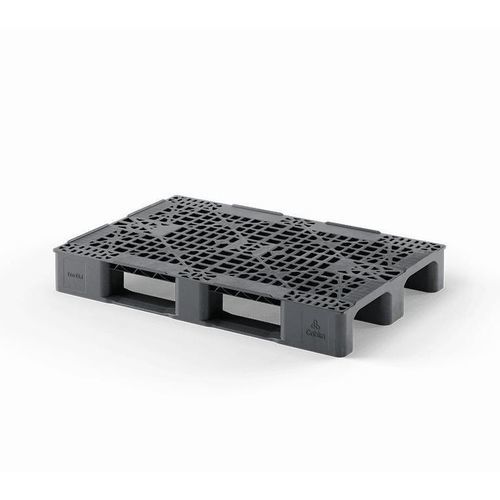

Plastic pallet Eco E5.1 (OD-3R)

transportstoragehandling

The Eco E5.1 (OD-3R) is a rackable monoblock plastic pallet engineered for closed-loop logistics, distribution, production areas and export. Its monoblock construction offers an optimal weight-to-load ratio and is suitable for roller conveyors and high-racking storage. The flow-through block design enables effective cleaning and rapid drying.

Key features

• Monoblock design with an optimal weight/load ratio for cost-efficient performance.
• Flow-through block structure for effective cleaning and fast drying.
• Rounded corners to reduce risk of fork damage on entry points.
• Reusable pallet produced from recycled plastic; 100% recyclable.
• Performs well on roller conveyors and in high racking systems.

Available versions

• Eco E5.1 (OD-3R)
• Eco E5.1 (OD-2R)
• Eco E5.1 (CD-2R)
• Eco E5.1 (CD-3R)

Technical specifications

• Product name (page): Eco E5.1 (OD-3R)
• Model: Eco E5.1
• Entry: 4-way
• Nesting height: not specified
• Safety rim: 6 mm
• Material: Polypropylene (PP) — made from recycled plastic, 100% recyclable
• Dimensions: 1200 x 800 x 150 mm (OD-3R and other versions)
• Static load capacity: 3000 Kg
• Dynamic load capacity: 1500 Kg
• Racking capacity (by version): OD-3R = 750 Kg; OD-2R = 600 Kg; CD-2R = 600 Kg; CD-3R = 750 Kg
• Bottom support (by version): OD-3R = 3run; OD-2R = 2run; CD-2R = 2run; CD-3R = 3run
• Upper deck (by version): OD-3R = open; OD-2R = open; CD-2R = closed; CD-3R = closed
• Weight (PP) (by version): OD-3R = 13.5 Kg; OD-2R = 12.5 Kg; CD-2R = 13.5 Kg; CD-3R = 14.5 Kg
• Ideal applications: closed-loop logistics, distribution, production areas, export; suitable for roller conveyors and high racking systems
• Cleaning: flow-through block design for effective cleaning and quick drying
