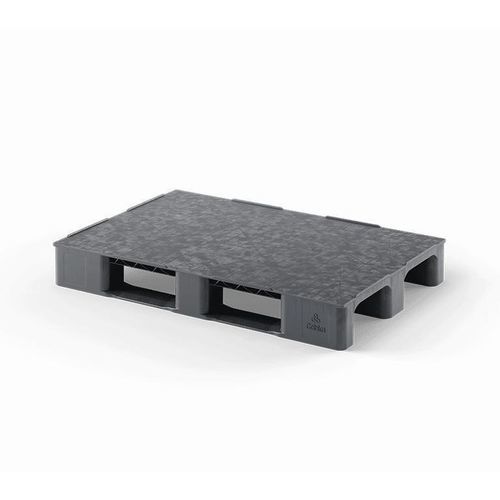

Plastic pallet Eco E5.1 (CD-2R)

transportstoragehandling

The Eco E5.1 (CD-2R) is a rackable plastic pallet (1200 x 800 mm) with two runners and a closed deck that provides an optimal weight/load ratio, durability and reliable load protection. Monoblock in design, reusable and made from recycled polypropylene, it is 100% recyclable and suited to closed loops, distribution, production areas and export. The closed deck protects goods and prevents contamination; rounded corners limit potential fork-access damage and the pallet performs well on roller conveyors and in high-rack storage.

Features

• Rackable pallet with two runners (2-run)
• Closed deck (closed upper surface) for superior load protection and contamination prevention
• Monoblock design with optimized weight/load ratio
• Reusable, made from recycled plastic and fully recyclable
• Rounded corners to reduce fork access damage
• Good performance on roller conveyors and in high-rack storage

Available versions

• Eco E5.1 (CD-2R) — Closed deck, 2 runners
• Eco E5.1 (OD-2R) — Open deck, 2 runners
• Eco E5.1 (OD-3R) — Open deck, 3 runners
• Eco E5.1 (CD-3R) — Closed deck, 3 runners

Characteristics / technical specifications

• Product family/model: Eco E5.1
• Standard dimensions (mm): 1200 x 800 x 150
• Entry: 4 ways (fork entry)
• Nesting height: - mm (not specified)
• Safety rim: 6 mm
• Bottom support: 2-run for CD-2R and OD-2R; 3-run for OD-3R and CD-3R
• Upper deck: closed for CD versions; open for OD versions
• Load capacity (Kg): static 3000 kg (all versions)
• Dynamic load capacity (Kg): 1500 kg (all versions)
• Racking capacity (Kg): Eco E5.1 (CD-2R): 600 kg; Eco E5.1 (OD-2R): 600 kg; Eco E5.1 (OD-3R): 750 kg; Eco E5.1 (CD-3R): 750 kg
• Weight (PP) (Kg): Eco E5.1 (CD-2R): 13.5 kg; Eco E5.1 (OD-2R): 12.5 kg; Eco E5.1 (OD-3R): 13.5 kg; Eco E5.1 (CD-3R): 14.5 kg
• Material: polypropylene (PP) recycled plastic (reusable and 100% recyclable)
