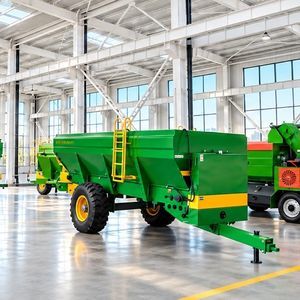

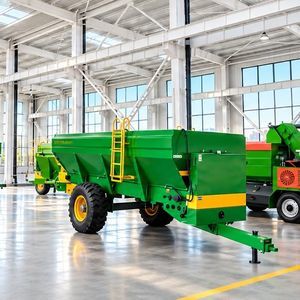

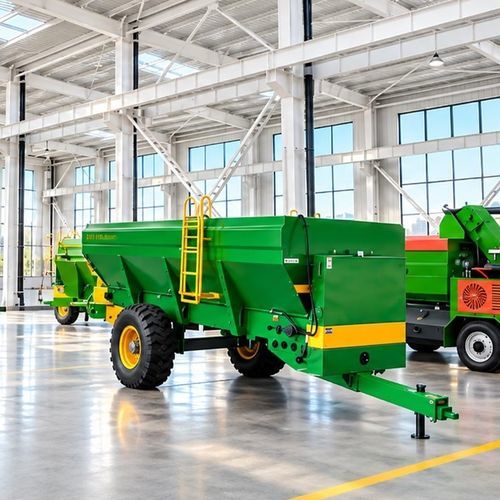

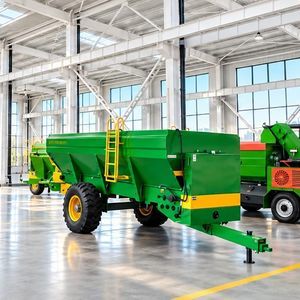

Horizontal mixing wagon

mounted3-augerwith weighing system

Product Overview
The HC9JS-3 is a 3 m³ horizontal vehicle-mounted TMR (total mixed ration) mixer designed for on-farm preparation and delivery of livestock rations. It mixes forage, silage and concentrates into a uniform ration and supports loading, transport and discharge operations for daily feeding tasks.

Key Features and Advantages

• Horizontal auger configuration for homogeneous TMR mixing.
• Vehicle-mounted, self-propelled design for on-farm mobility and direct feeding access.
• Built-in weighing system for accurate ration batching and traceability.
• Driver-left discharge for streamlined unloading and feeding workflows.
• Multiple augers (1 main, 2 auxiliary) to ensure consistent material flow and mixing.

Technical Specifications (table)

• Model: HC9JS-3
• Capacity: 3 m³
• Overall Dimensions (L × W × H): 4180 × 1700 × 2400 mm
• Structure Type: Self-propelled
• Discharge Direction: Driver-left discharge
• Chassis: Foton Wuxing three-wheel chassis
• Auger Quantity: 1 main auger, 2 auxiliary augers
• Weighing System: Built-in weighing system
• Traveling Power: 20 HP
• Mixing Power: 22 HP
• Mixing Capacity: 1000–2000 kg/h
• Feeding Speed: 3–5 min/vehicle

Applications

• Livestock farms (cattle, sheep, goats)
• Preparation of total mixed rations (TMR) on-site
• Daily feeding operations and feed distribution
• Integration with farm feeding schedules and feed management systems

Specifications

• Model: HC9JS-3
• Commercial name: 3 m³ Horizontal Vehicle-Mounted TMR Mixer
• Capacity: 3 m³
• Overall Dimensions: 4180 × 1700 × 2400 mm
• Mixing Capacity: 1000–2000 kg/h
• Traveling Power: 20 HP
• Mixing Power: 22 HP
• Structure Type: Self-propelled
• Discharge Direction: Driver-left discharge
• Chassis: Foton Wuxing three-wheel chassis
• Auger Quantity: 1 main auger, 2 auxiliary augers
• Weighing System: Built-in weighing system
• Feeding Speed: 3–5 min/vehicle
