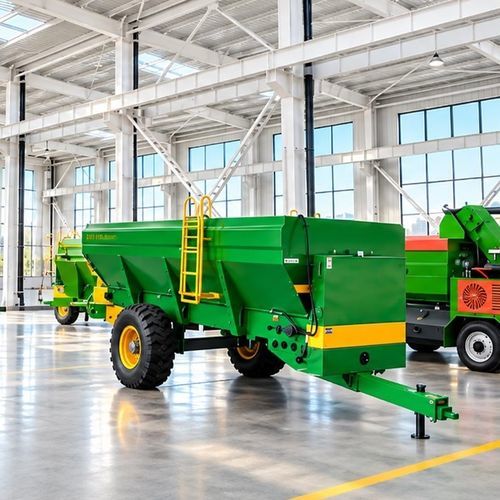

Horizontal mixing wagon 9JQW-3

towed3-augerwith weighing system

Product overview
The 9JQW-3 horizontal PTO-driven Total Mixed Ration (TMR) feed mixer is a trailed machine designed for on-farm preparation and distribution of uniform rations. It mixes forage, silage and concentrates to produce consistent daily rations for cattle and sheep operations.

Key features and advantages

• Horizontal trailed configuration driven by tractor PTO for field mobility and on-farm use.
• 3 m³ hopper volume suited to small to medium livestock farms.
• Integrated weighing system for recipe control and batching.
• Dual auger layout and multiple blade types for efficient mixing and discharge.

Basic data
Overall dimensions (L x W x H): 3300 × 1550 × 1800 mm
Hopper volume: 3 m³
Power requirement: Tractor rear output power 30 HP or above

Technical specifications

• Product name: Total Mixed Ration feed mixer
• Model: 9JQW-3
• Hopper volume: 3 m³
• Structure type: Horizontal trailed type
• Overall dimensions (L x W x H): 3300 × 1550 × 1800 mm
• Power requirement: Tractor rear output power 30 HP or above
• Reducer: ZQ350
• Main shaft speed: 18 r/min
• Blade quantity: large blades 6, small blades 21 pcs
• Blade material: Cr12MoV
• Weighing system: 1 set
• Main auger quantity: 1 pcs
• Auxiliary auger quantity: 2 pcs
• Tire model: 185/70R-13

Applications

• Livestock farms (cattle, sheep)
• Preparation of total mixed rations (TMR)
• Daily feeding and feed distribution
• On-farm feed processing and loading operations
