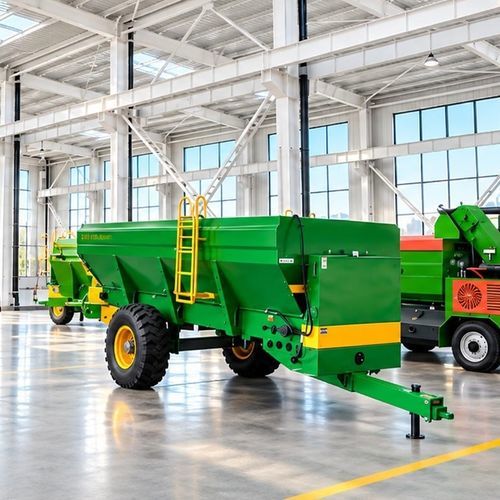

Horizontal mixing wagon 9JQW-5

towed3-augerwith weighing system

Product Overview
The 5 m³ Horizontal PTO TMR Mixer 9JQW-5 is a tractor PTO-driven horizontal trailed total mixed ration (TMR) feed mixer designed for on-farm preparation and distribution of livestock rations. It mixes forage, silage and concentrate ingredients into a homogeneous ration and supports loading, weighing and discharge operations.

Key Features and Advantages

• Tractor PTO-driven horizontal mixing system suitable for cattle and sheep operations.
• 5 m³ hopper capacity with single main auger and two auxiliary augers for uniform mixing and discharge control.
• Integrated weighing system (1 set) for batch accuracy and ration management.
• Heavy-duty wear parts: Cr12MoV blades and QB345 steel body plates.
• Removable bolt-fixed tow bar and standard tire 10.0/80-12 for transportability.

General Data
Overall Dimensions (L x W x H): 4700 x 1700 x 2100 mm
Hopper Volume: 5 m³
Machine Weight: approx. 2200 kg

Technical Specifications

• Product Name: Total Mixed Ration Feed Mixer
• Model: 9JQW-5
• Structure Type: Horizontal trailed type
• Power Requirement: Tractor rear output power 40 HP or above
• Reducer: ZQ500
• Main Shaft Speed: 18 r/min
• Blade Quantity: large blades 10; small blades 35
• Blade Material: Cr12MoV
• Steel Plate Material: QB345
• Plate Thickness: bottom 6 mm; side 5 mm; front/rear 10 mm
• Weighing System: 1 set
• Main Auger Quantity: 1
• Auxiliary Auger Quantity: 2
• Tow Bar: Bolt-fixed, removable
• Tire Model: 10.0/80-12

Applications

• Livestock farms and feedlots
• Cattle and sheep ration preparation
• Total mixed ration processing and blending
• Daily feeding, loading and distribution support
