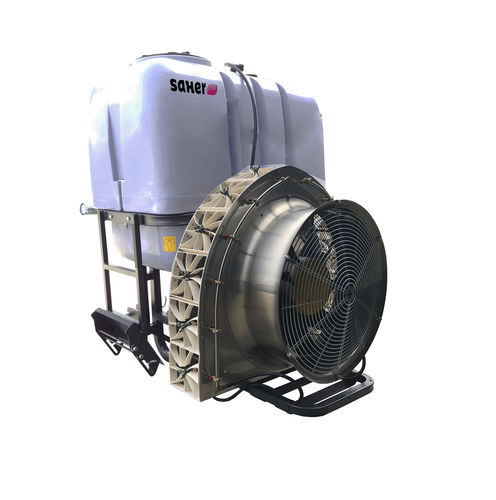

Pest control fogger Vortex Arcum

for plant protectionfor outdoor use

Overview
The Vortex Arcum Suspended Atomiser is a suspended agricultural atomiser engineered for high-flow turbulent distribution. It integrates patented ARCUM turbulence deflectors, a reinforced anti-corrosion chassis and modular options to adapt to orchard, vineyard and speciality-crop requirements.

Standard equipment

• 3 polyethylene tanks (main tank, circuit washer and hand wash basin)
• Capacities: 600 L, 800 L, 1,000 L, 1,200 L
• Reinforced chassis with anti-corrosion treatment and painted finish
• Annovi Reverberi AR-1053 pump (3 diaphragms, 105 L/min, 50 atm)
• Stainless steel nozzle and spray tube
• Manual regulating knob with 2 outlets and pressure gauge Ø63
• Anti-pollution charger
• Hydraulic agitator
• Reinforced transmission
• Internal tank cleaning robot (from 500 L)
• Side ladders (from 1,000 L)
• High-flow fan unit with galvanised plates
• 10 or 12 patented turbulence deflectors (ARCUM 10 / ARCUM 12 / ARCUM M)

Optional accessories and supplements

• Fan unit options: stainless steel plates group, propeller protection rubber skirt, anti-leaf grille Ø920, hydraulic stainless upper ailerons
• Jet options: TVI anti-drift nozzle; Triple anti-drip ATI (standard on some configs)
• Pump upgrade: Annovi Reverberi AR-1203 (120 L/min; 50 atm)
• Controls, solenoid valves and computers: tractor control taps, single-lever mixer, Braglia on/off solenoid valves with pressure regulator, Sonar/Sonic, Arag and WAATIC computers with GPS and sensors
• Additional solenoid valve option
• Other accessories: powder mixer with bottle cleaner, product incorporator, electrical installation kit, suspended galvanised chassis

Configurations and variants

• Available capacities: 600 L, 800 L, 1,000 L, 1,200 L
• Turbulence deflector variants: ARCUM 10, ARCUM 12, ARCUM M
• Multiple SKU/configuration options depending on capacity, deflectors and accessories

Applications
Suitable for suspended atomising in citrus, fruit trees, olives, vineyards, cereals and vegetable crops where high-flow turbulent distribution and uniform coverage are required.

Technical specifications

• Model / Series: Vortex Arcum
• Main tank material: polyethylene
• Tank capacities: 600 L – 1,200 L
• Pump (standard): Annovi Reverberi AR-1053, 3 diaphragms, 105 L/min, 50 atm
• Pump (optional): Annovi Reverberi AR-1203, 120 L/min, 50 atm
• Nozzle and spray tube material: stainless steel
• Regulation: Manual regulating knob, 2 outlets, pressure gauge Ø63
• Agitation: Hydraulic agitator
• Transmission: Reinforced transmission
• Cleaning: Internal tank cleaning robot available from 500 L tanks
• Chassis: Reinforced, anti-corrosion treated, painted (optional suspended galvanised chassis)
• Fan: High-flow fan unit; galvanised fan unit plates
• Turbulence deflectors: 10 or 12 patented deflectors (ARCUM 10 / ARCUM 12 / ARCUM M)
• Optional jets: TVI anti-drift nozzle; Triple anti-drip ATI
• Optional electronics: multiple control/computer options including GPS-capable systems and sonar sensors
