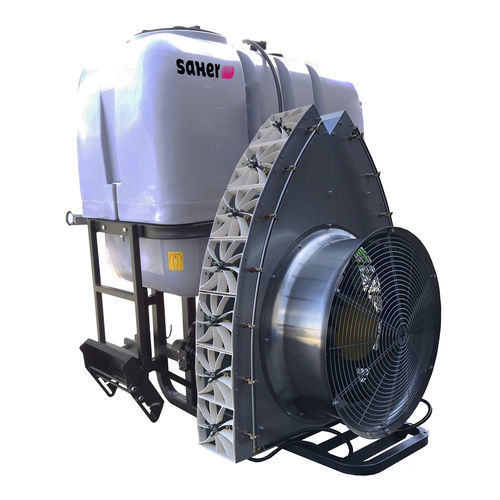

3-point hitch agricultural atomizer ATALAYA

hydraulicmanualwith diaphragm pump

Description
The suspended sprayer from the Vortex Atalaya range is designed for agricultural applications requiring uniform distribution and high flow. Equipment is focused on durability, corrosion protection and ease of maintenance, with options for automated tank cleaning and high-capacity fan units.

Standard equipment

• 3 polyethylene tanks (main, circuit washer and hand wash basin)
• Capacities: 600 to 1500 L
• Chassis reinforced with anti-corrosion treatment and painted
• Annovi Reverberi AR-1053 pump (3 membranes, 105 L/min, 50 atm)
• Stainless-steel nozzle
• Stainless-steel spray tube
• Manual regulating knob, 2 outlets and pressure gauge Ø63
• Anti-pollution charger
• Hydraulic agitator
• Reinforced transmission
• Tank interior cleaning robot (from 500 L)
• Lateral stairs from 1,000 L
• High-flow fan unit
• Galvanized sheet metal group
• 14 patented turbulence deflectors

Available variants
Model | Capacity | SKU | Price (excl. VAT)
ATALAYA M | 600 L | A600-G920VXATMS | 9342
ATALAYA M | 800 L | A800-G920VXATMS | 9472
ATALAYA M | 1000 L | A1000G920VXATMS | 9795
ATALAYA M | 1200 L | A1200G920VXATMS | 9931
ATALAYA | 600 L | A600-G920VXATS | 9006
ATALAYA | 800 L | A800-G920VXATS | 9136
ATALAYA | 1000 L | A1000-G920VXATS | 9459
ATALAYA | 1200 L | A1200-G920VXATS | 9595
ATALAYA | 1500 L | A1500-G920VXATS | 10259

Optional accessories

• Fan group options (inox sheet group, skirt, anti-leaf grid, upper hydraulic stainless-steel vanes)
• Jets: TVI low-drift nozzle / triple anti-drip ATI (standard element)
• Alternative pumps: Annovi Reverberi AR-1203 (120 L/min; 50 atm) available as an option
• Controls, solenoid valves and computers: multiple options (single-control, Sonar Sonic, Arag/WAATIC computers with GPS, Braglia solenoid valves, ISOBUS unit, etc.)
• Additional optional solenoid valve
• Other accessories: powder mixer with bottle rinser, product incorporator, electrical installation kit, suspended galvanized chassis

Technical specifications

• Type: Suspended sprayer (Vortex Atalaya)
• Tanks: 3 polyethylene tanks (main, circuit washer and hand wash basin)
• Capacities: 600 to 1500 L
• Chassis: reinforced with anti-corrosion treatment and painted (optional galvanized chassis)
• Standard pump: Annovi Reverberi AR-1053, 3 membranes, 105 L/min, 50 atm (option AR-1203, 120 L/min)
• Materials: stainless-steel nozzles and spray tubes
• Control: manual regulating knob, 2 outlets and pressure gauge Ø63 (various electronic controls/computers available)
• Agitator: hydraulic
• Transmission: reinforced
• Cleaning: tank interior cleaning robot available from 500 L
• Accessibility: lateral stairs from 1,000 L
• Ventilation: high-flow fan unit
• Protections: anti-pollution charger; 14 patented turbulence deflectors
• Model variants: ATALAYA and ATALAYA M
• References/SKUs: included in the variants table
