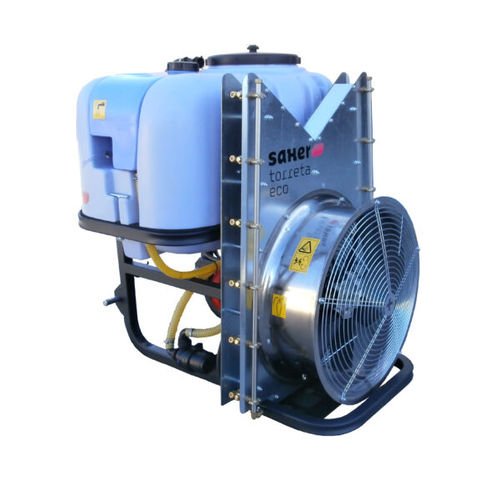

Sprayer with axial propeller Torreta ECOhydraulicmanualwith diaphragm pump
Add to favorites
Compare this product
Characteristics
- Type
- with axial propeller
- Technology
- hydraulic
- Control regulator
- manual
- Other characteristics
- with diaphragm pump
- Capacity
Min.: 300 l
(79.3 gal)Max.: 600 l
(158.5 gal)- Pump capacity
81 l/min
(21.4 us gal/min)
Description
Standard equipment
Optional supplements Torreta ECO
Note on variants
Characteristics / Technical specifications
- 3 polyethylene tanks (main, circuit washer and hand-wash)
- Capacities: 300 to 600 L
- Reinforced chassis with anti-corrosion treatment and painted finish
- Annovi Reverberi AR-813 pump (3 diaphragms, 81 L/min, 50 atm)
- Stainless steel nozzle
- Stainless spray tubes
- Manual regulator control with 2 outlets and Ø63 pressure gauge
- Anti-contamination filler
- Hydraulic agitator
- Reinforced transmission
- Internal tank cleaning robot (from 500 L)
- Turret group plates in galvanized steel
Optional supplements Torreta ECO
- Fan group: propeller protection rubber (skirt)
- Jets: adjustable; ATI nozzle; TVI drift-reduction nozzle; double anti-drip (standard element)
- Controls, solenoid valves and computers: options from tractor-only valves to Arag/WAATIC computers with GPS and solenoid valves (various configurations and prices)
- Optional additional solenoid valve
- Other accessories: powder mixer with bottle cleaner; product incorporator; electrical installation kit; galvanized suspended chassis
Note on variants
- Available capacities: 300 L, 400 L, 500 L, 600 L
- Fan options: Ø700 mm fan (option indicated in variations)
Characteristics / Technical specifications
- Commercial model: Torreta ECO
- Capacities: 300 - 400 - 500 - 600 litres
- Pump: Annovi Reverberi AR-813, 3 diaphragms, flow 81 L/min, 50 atm
- Materials: polyethylene tanks; nozzles and spray tubes in stainless steel; turret group plates in galvanized steel
- Chassis: reinforced with anti-corrosion treatment and painted finish (galvanized chassis option available)
- Control: manual regulator with 2 outlets and Ø63 pressure gauge (standard); multiple control and computer options (Arag, WAATIC) available as supplements
- Accessories and options: anti-contamination filler; hydraulic agitator; reinforced transmission; internal cleaning robot (from 500 L); multiple jets and nozzles (including TVI drift-reduction nozzle)
- Variants / references and indicative prices (amounts shown on the page, units in EUR, excluding VAT): 300 L (SKU A300-G700TE) - 4448; 400 L (SKU A400-G700TE) - 4482; 500 L (SKU A500-G700TE) - 4611; 600 L (SKU A600-G700TE) - 4937
