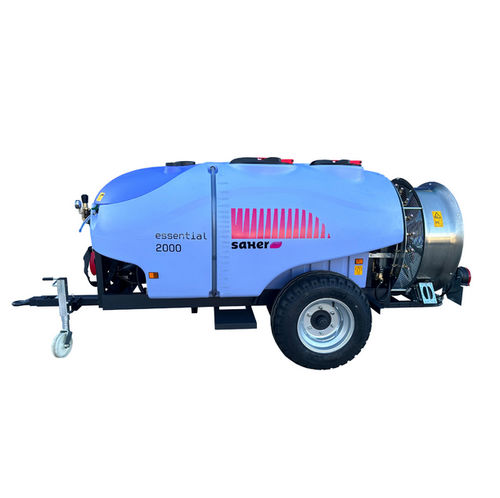

Towed sprayer Essentialhydraulicdouble-nozzlewith diaphragm pump
Add to favorites
Compare this product
Characteristics
- Mobility
- towed
- Technology
- hydraulic
- Other characteristics
- with diaphragm pump, double-nozzle
- Capacity
Max.: 2,500 l
(660.4 gal)Min.: 1,500 l
(396.3 gal)- Pump capacity
105 l/min
(27.7 us gal/min)- Pump pressure
50.7 bar
(735.3 psi)
Description
Standard equipment
Optional supplements (summary)
Capacities and variants
Characteristics / technical specifications
- 3 polyethylene tanks (main, circuit washer and hand-wash)
- Capacities: 1,500; 2,000; 2,000 low; 2,500 L
- Two external visible level indicators
- Reinforced chassis with anti-corrosion treatment and paint
- Annovi Reverberi AR-1053 pump (3 diaphragms, 105 l/min, 50 atm)
- Stainless steel nozzle
- Stainless spray tubes
- Rear individual electrovalves
- Electrical installation included
- 1 hydraulic agitator
- Parking brake (chocks) for all capacities
- Reinforced transmission
- Fixed hitch with ring or eye
- Swivel jockey wheel
- Fixed axle
- Wheel 10.0/80-12 10 PR (for 1,500 L)
- Wheel 10.0/75-15.3 12 PR (other capacities)
Optional supplements (summary)
- Fan group: accessories such as propeller protection rubber (skirt), anti-leaf grille Ø920, etc.
- Jets: options adjustable, ATI nozzle, anti-drift TVI nozzle; default: double anti-drip - standard element
- Pumps: standard Annovi Reverberi AR-1053; upgrade option to AR-1203
- Hitches: options for swivel hitch or drawbar (various types by capacity)
- Transmissions: reinforced transmission included as standard; optional homokinetic drives G4/G7
- Other accessories: powder mixer with towed bottle cleaner, and more accessories available
- Optional vanes: several vane sets for Ø920 fan (different height and jet configurations)
Capacities and variants
- Available variants: 1500 L, 2000 L, 2000 L low, 2500 L
- Indicative prices by variant (values shown on site): 1500 L (8120), 2000 L (8640), 2000 L low (8850), 2500 L (9150)
Characteristics / technical specifications
- Type: towed sprayer
- Model/Designation: Essential
- Tanks: 3 polyethylene tanks (main, circuit washer, hand-wash)
- Standard pump: Annovi Reverberi AR-1053, 3 diaphragms, 105 l/min, 50 atm
- Materials: nozzles and spray tubes in stainless steel
- Control: rear individual electrovalves and electrical installation included
- Agitation: 1 hydraulic agitator
- Parking/braking: parking brake (chocks) for all capacities
- Transmission: reinforced (standard)
- Hitch: fixed with ring or eye (swivel hitch options available)
- Wheels: 10.0/80-12 10 PR (1,500 L); 10.0/75-15.3 12 PR (other capacities)
- Notable optional elements: alternate pumps (AR-1203), different jets and nozzles, fan group with grille and protection, vanes for Ø920 fan, powder mixer, etc.
