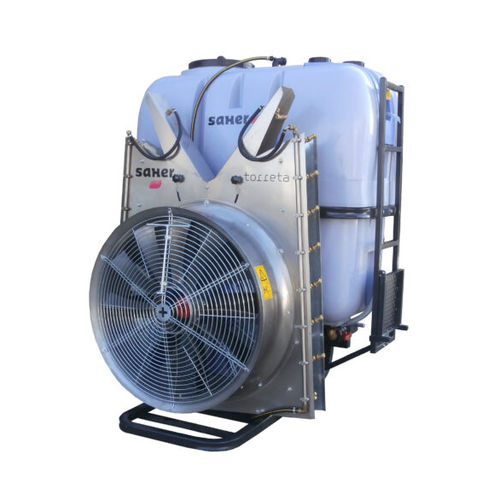

Orchard agricultural atomizer A400-G820T

vineyardturbinehydraulic

Overview
Suspended tower sprayer designed for vineyard and orchard applications. Available in multiple tank capacities and configurable with a wide range of standard equipment and optional accessories to suit crop and tractor configurations.

Standard equipment

• 3 polyethylene tanks (main, circuit rinse and handwash)
• Capacities: 400–1,200 L
• Reinforced chassis with anti-corrosion treatment and paint finish
• Annovi Reverberi pump AR-813 (3 diaphragms, 81 L/min, 50 bar)
• Stainless steel nozzle
• Stainless steel spray tubes
• Manual regulator control with 2 outlets and Ø63 pressure gauge
• Anti-contamination filler
• Hydraulic agitator
• Reinforced transmission
• Internal tank cleaning robot (from 500 L)
• Side ladders (from 1,000 L)
• Rear and bottom stainless steel panel for tower group
• Stainless steel air diffuser star
• Adjustable upper and lower stainless steel vanes

Capacities and available configurations

• Capacities: 400 L, 500 L, 600 L, 800 L, 1000 L, 1200 L
• Fan options: Ø820 mm and Ø920 mm

Supplements and options (summary)
Fan group

• Fan clutch (optional)
• Propeller protection rubber (skirt) (optional)

Leaf guard

• Leaf guard Ø820 (optional)
• Leaf guard Ø920 (optional)

Jets

• ATI nozzle (optional)
• TVI drift-reduction nozzle (optional)
• Adjustable double anti-drip (standard)

Pumps

• Annovi Reverberi AR-813 (3 diaphragms, 81 L/min, 50 bar) — standard
• Optional pumps: AR-1053 (105 L/min; 50 bar), AR-1203 (120 L/min; 50 bar)

Controls, solenoid valves and computers

• Manual regulator control with 2 outlets and Ø63 pressure gauge — standard
• Options: tractor-only valves, single-lever control, Braglia on/off solenoid valves with machine- or cab-mounted regulator, Sonar Sonic with solenoid valves, Arag/WAATIC computers with GPS and sensors (various configurations), ISOBUS-ready control unit with 2-way Arag solenoid valves

Additional solenoid valve (optional)

• Additional solenoid valve (optional)

Other accessories

• Powder mixer with bottle cleaner
• Product incorporator
• Electric installation kit
• Galvanized suspended chassis

Observations
Equipment and options vary depending on chosen configuration (fan, capacity and variants). Some functions (internal tank cleaning robot, side ladders, etc.) are enabled from specific capacities.

Characteristics / technical specifications

• Type: Suspended tower sprayer for vineyard/orchard
• Available capacities: 400 / 500 / 600 / 800 / 1000 / 1200 litres
• Fan: Ø820 mm or Ø920 mm (depending on variant)
• Standard pump: Annovi Reverberi AR-813 (3 diaphragms) — 81 L/min, 50 bar
• Tank material: Polyethylene (main, circuit rinse, handwash)
• Chassis: Reinforced with anti-corrosion treatment and painted finish (optional galvanized chassis)
• Stainless elements: nozzle, spray tubes, rear and bottom panel, air diffuser star, adjustable vanes
• Control: Manual regulator with 2 outlets and Ø63 pressure gauge — multiple solenoid valve and computer options available
• Tank cleaning: Internal cleaning robot (from 500 L)
• Available accessories: leaf guard, fan clutch, skirt, powder mixer, product incorporator, electrical kit, among others
• Visible variants / SKUs: A400-G820T (400 L / Fan Ø820), A500-G820T, A600-G820T, A800-G820T, A800-G920TV, A1000-G920TV, A1200-G920TV
