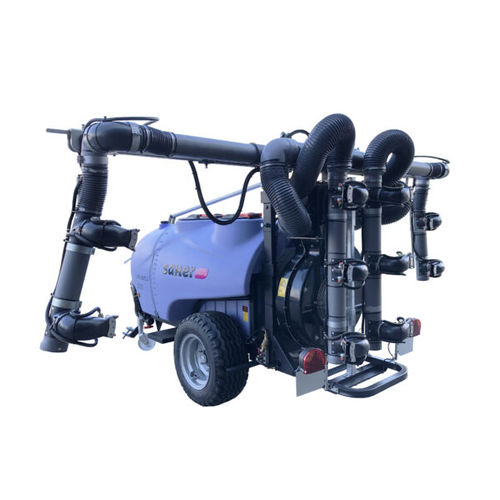

Towed agricultural atomizer N1000
for pest controlturbinehydraulic

Add to favorites

Compare this product

Characteristics

Mobility

towed

Application

for pest control

Type

turbine

Technology

hydraulic

Other characteristics

double-nozzle, with diaphragm pump

Capacity

Max.: 3,000 l
(792.5 gal)

Min.: 1,000 l
(264.2 gal)

Pump capacity

Max.: 160 l/min
(42.3 us gal/min)

Min.: 120 l/min
(31.7 us gal/min)

Pump pressure

Max.: 50 bar
(725.2 psi)

Min.: 50 bar
(725.2 psi)

Standard equipment

Available capacities

Pumps and hydraulic options

Standard pump: Annovi Reverberi AR-1203 (3 diaphragms; 120 l/min; 50 atm)
Available options: Annovi Reverberi AR-1604 (160 l/min; 50 atm), Annovi Reverberi BHA-130 (130 l/min; 50 atm), BHA-150 (150 l/min; 50 atm), BHS-130 (brass series, 130 l/min; 50 atm), BHS-150 (brass series, 150 l/min; 50 atm)

Optional supplements and accessories (summary)

Jets: TVI anti-drift nozzle; adjustable double anti-drip ATI (standard)
Hitches: fixed hitch with ring or socket (standard) or swivel/boom hitches depending on configuration
Transmissions: reinforced transmission (standard); homokinetic options G4 or G7
Controls/solenoid valves and computers: single-lever (standard); options with pressure regulator on machine or cab, Arag Bravo computers, WAATIC (with GPS), ISOBUS units with solenoid valves
Optional additional solenoid valve
Other accessories: GPS antenna, 3 m Bravo cable extension, powder mixer with bottle cleaner, product incorporator, anti-contamination charger (hose Ø40), side drawers and mudguards, galvanized towed chassis
Wheel/rim options according to capacity (various sizes and load ratings depending on version)

Variants and references

References / SKUs by capacity visible in product configuration (examples): N1000-211R7MTR, N1500-211R7MTR, N2000-211R7MTR, N2500-211R7MTR, N1300-211R7MTR (3000 L narrow)

Technical and usage notes

Product with variable configuration: capacity selection and multiple configurable options
Brakes, transmission and wheels adapt according to selected capacity

Characteristics / technical specifications

Tanks: 3 polyethylene tanks (main, circuit washer and handwash)
Capacities: 1000 / 1500 / 2000 / 2500 / 3000 L (3000 L narrow version)
Levels: two external visible level indicators
Chassis: reinforced with anti-corrosion treatment and painted finish (option: galvanized chassis)
Standard pump: Annovi Reverberi AR-1203 (3 diaphragms; 120 l/min; 50 atm)
Transmission: reinforced (standard); homokinetic alternatives available
Control system: single-lever (standard); multiple solenoid valve and computer configurations available
Agitation: hydraulic agitators
Brakes: parking brake (wheel chocks) for all capacities; hydraulic service brake from 3000 L
Hitch: fixed with ring or socket (standard); swivel/boom options depending on configuration
Jockey wheel: swivel
Cleaning: internal tank cleaning robot
Turbine protection: rubber skirt and polyester housing
Boons: 5-motion booms with double-acting electro-distributor for four-sided treatment
Output: 10 handles with double nozzles
Boom movements: Open/Close individual; Raise/Lower; Bypass individual row
Wheel options: multiple sizes and load ratings depending on chosen version
