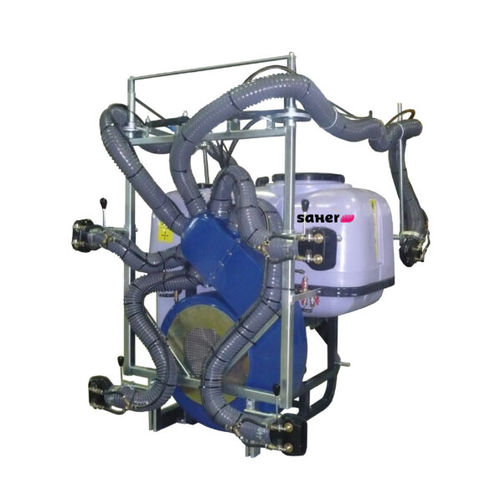

Towed agricultural atomizer N1000-112S7-6

turbinehydraulic

Product overview
Suspended nebuliser designed for agricultural applications, available with 6 or 8 outlets and tank capacities from 300 to 1,200 L. Built on a reinforced chassis with anti-corrosion treatment and painted finish, it integrates robust transmission and hydraulic agitation for reliable field performance.

Standard equipment

• Three polyethylene tanks: main tank, circuit washer and hand wash basin
• Available capacities: 300, 400, 500, 600, 800, 1,000 and 1,200 L
• Reinforced chassis with anti-corrosion treatment and painted finish
• Annovi Reverberi AR-813 pump (3 diaphragms, 81 L/min, 50 atm) — standard
• Manual regulating knob for 2 outlets and pressure gauge Ø63 (standard)
• Anti-pollution loader
• Hydraulic agitator
• Reinforced transmission
• Tank interior cleaning robot (available from 500 L)
• Side ladders available from 1,000 L
• Polyester turbine casing
• Manual, extendable and adjustable arms
• 6 or 8 double sprayers (configurable)
• Manual open/close movements

Optional features and accessories

• Pump upgrade options: Annovi Reverberi AR-1053 (105 L/min, 50 atm) or AR-1203 (120 L/min, 50 atm)
• Hydraulic arms kit (open-close) with 4 hoses (optional)
• Nozzles: TVI anti-drift nozzle (optional) — Adjustable double anti-drip ATI supplied as standard
• Controls, solenoid valves and computers: tractor-only control taps, single lever mixer, Braglia on/off solenoid valves with pressure regulator and larger Ø100 gauge (optional)
• Computers/GPS options: Arag Bravo 2-way computer with GPS antenna, WAATIC 2-way computer and ISOBUS-compatible control units (optional)
• Optional additional solenoid valve
• Optional accessories: GPS antenna for Bravo computers, 3 m cable extension for Bravo, powder mixer with bottle cleaner, product incorporator, electrical installation kit, suspended galvanised chassis (examples)

Technical characteristics / specifications

• Model family: Suspended nebuliser
• Outlets: 6 or 8 (configurable)
• Tank capacities: 300, 400, 500, 600, 800, 1,000, 1,200 L
• Tanks: 3 polyethylene tanks (main, circuit washer, hand wash basin)
• Standard pump: Annovi Reverberi AR-813 — 3 diaphragms, 81 L/min, 50 atm
• Optional pumps: AR-1053 (105 L/min, 50 atm), AR-1203 (120 L/min, 50 atm)
• Pressure control: Manual regulating knob for 2 outlets with pressure gauge Ø63 (standard); optional pressure regulator on machine or in cab and Ø100 gauge
• Agitation: Hydraulic agitator (standard)
• Chassis: Reinforced with anti-corrosion treatment; optional galvanised chassis available
• Transmission: Reinforced transmission
• Tank cleaning: Interior cleaning robot available from 500 L
• Accessories: Side ladders from 1,000 L
• Turbine casing: Polyester
• Arms: Manual, extendable and adjustable (hydraulic kit optional)
• Nozzles/jets: Adjustable double anti-drip ATI (standard); TVI anti-drift nozzle optional
• Controls & electronics: Multiple optional control/computer solutions (Arag, WAATIC, ISOBUS-ready units) and optional solenoid valves
• Intended use: Agricultural nebulisation/spraying for vineyards, orchards, citrus, cereals, vegetables, olive groves and other crops
