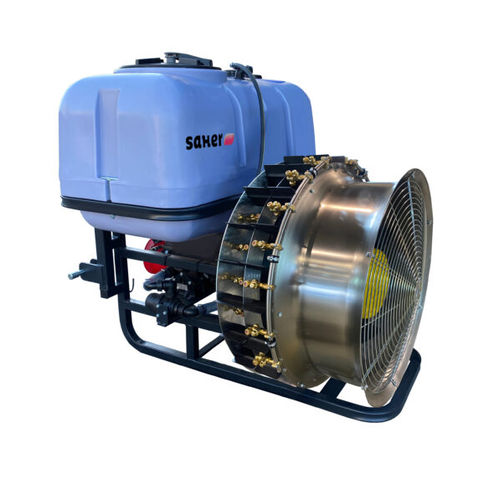

Mounted sprayer Ventum

hydraulicmanualwith diaphragm pump

Overview
Mounted sprayer for agricultural applications, available in multiple capacities, supplied as standard for professional use and with a range of optional accessories and add-ons.

Standard equipment

• 3 polyethylene tanks (main, circuit washer and hand-wash)
• Capacities: 600, 800, 1000 and 1200 litres
• Reinforced chassis with anti-corrosion treatment and painted finish
• Annovi Reverberi AR-1053 pump (3 diaphragms, 105 L/min, 50 atm)
• Stainless-steel nozzle
• Stainless-steel spray boom tubes
• Manual regulator control with 2 outlets and Ø63 pressure gauge
• Anti-contamination filler
• Hydraulic agitator
• Reinforced transmission
• Internal tank cleaning robot
• Side ladders from 1,000 L models

Optional supplements (summary)

• Fan group: various kits and configurations (double-arch kit with 14 jets, protective skirt, anti-leaf grille, upper V-vanes with sprayers)
• Nozzle options: adjustable, ATI nozzle, anti-drift TVI nozzle, double adjustable anti-drip (standard component)
• Alternative pumps: Annovi Reverberi AR-1203 diaphragm pump (120 L/min; 50 atm) available as an option
• Controls, solenoid valves and computers: from simple controls to Arag/WAATIC computers with GPS and Sonar sensors; Braglia on/off solenoid valves with pressure regulator
• Additional optional solenoid valve
• Other accessories: powder mixer with bottle cleaner, product incorporator, electrical installation kit, galvanized suspended chassis

Variants
Capacity | SKU | Price (excl. VAT)
600 L | A600-G920VES | 7663
800 L | A800-G920VES | 7794
1000 L | A1000-G920VES | 8118
1200 L | A1200-G920VES | 8253

Characteristics / technical specifications

• Commercial model: Ventum
• Tanks: 3 polyethylene tanks (main, circuit washer, hand-wash)
• Capacity range: 600–1,200 L
• Chassis: reinforced, anti-corrosion treatment and painted finish (optional galvanized chassis)
• Standard pump: Annovi Reverberi AR-1053, 3 diaphragms, 105 L/min, 50 atm (optional AR-1203: 120 L/min, 50 atm)
• Spraying elements: stainless-steel nozzle and spray boom tubes; optional nozzle types (ATI, TVI, adjustable)
• Control: manual regulator control with 2 outlets + Ø63 pressure gauge (options: single control, solenoid valves, computers with GPS/Sonar)
• Safety/filling: anti-contamination filler
• Agitator: hydraulic
• Transmission: reinforced
• Maintenance: internal tank cleaning robot
• Accessibility: side ladders from 1,000 L
• Additional options: fan group, nozzle kits, protections, anti-leaf grilles, vanes, solenoid valves, computers and dosing/installation accessories
