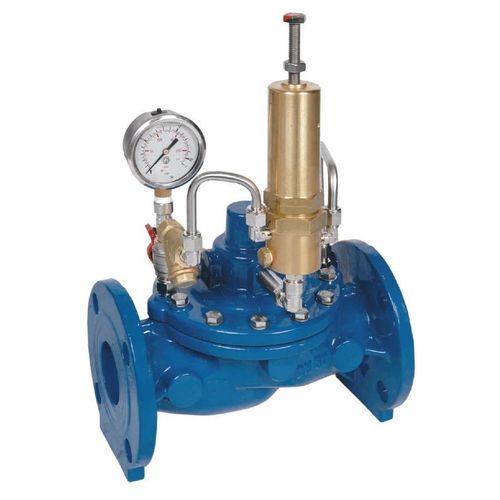

Safety release valve HM-C-SR

irrigationmanualcast iron

Hydromodul-C quick relief valve is a hydraulically operated diaphragm-controlled safety valve engineered to rapidly discharge excess pressure while minimizing cavitation and pressure loss. It is suitable for irrigation, waterworks and industrial water distribution systems. The design enables easy maintenance without removing the valve from the pipeline and allows pilot-circuit modifications for different functions.

Key features and benefits

• Hydrodynamic globe-body design without stagnation pockets for low pressure loss
• Standard body: ductile cast iron (GS500 / GGG50); carbon steel available on request
• Protective coating: 200°C furnace-applied polyester powder, ≥250 µm thickness
• Guided plunger shaft with dedicated plunger-disc and seat geometry to reduce cavitation
• Optional removable stainless-steel seat for enhanced cavitation resistance
• Obstacle-free full port; no spokes or grids in the closing passage to reduce clogging and simplify maintenance
• Optional dissipating cage obturator for higher pressure dissipation and opening stabilization
• Stainless-steel shaft, return spring located outside the flow path, and stainless-steel cover bolts
• Nylon-reinforced Buna-N diaphragm and anti-abrasion polyurethane plunger seal disc
• Drain plug (optional) on valve bottom for complete drainage in frost conditions
• Design permits pilot circuit maintenance while valve remains in service
• Main pilot pressure gauge included; additional gauges available on request

Standards conformity

• Flange-to-flange: UNI-EN 558-1, DIN 3202 series F5
• Flange drilling: ISO PN10-16; ANSI 150–300 compatibility on request
• Compliant for potable water use per DM174 / GU166 / DE98/83CE

Technical specifications

• Model / Series: Hydromodul-C
• Valve type: Quick relief / rapid discharge, diaphragm-piloted safety valve
• Body material: Ductile cast iron (GS500 / GGG50) standard; carbon steel on request
• Coating: 200°C furnace polyester powder coating, minimum 250 µm
• Plunger & seat: Guided plunger shaft; special disc and seat geometry to mitigate cavitation; removable stainless-steel seat optional
• Sealing: Anti-abrasion polyurethane plunger seal disc; diaphragm: nylon-reinforced Buna-N
• Internal components: Stainless-steel shaft and fasteners; return spring positioned outside flow path
• Flow path: Obstacle-free full port; no spokes/grids in closing passage
• Maintenance: Easy access to internal parts without removing valve from pipeline; pilot circuit serviceable during operation
• Optional accessories: Dissipating cage obturator, drain plug, additional pressure gauges
• Flange standards & drilling: UNI-EN 558-1 / DIN 3202 F5; ISO PN10-16 drilling; ANSI 150–300 compatibility on request
• Compliance: Suitable for potable water per DM174 / GU166 / DE98/83CE
