Irrigation valve HM-C-RP2M

manualnylonstainless steel

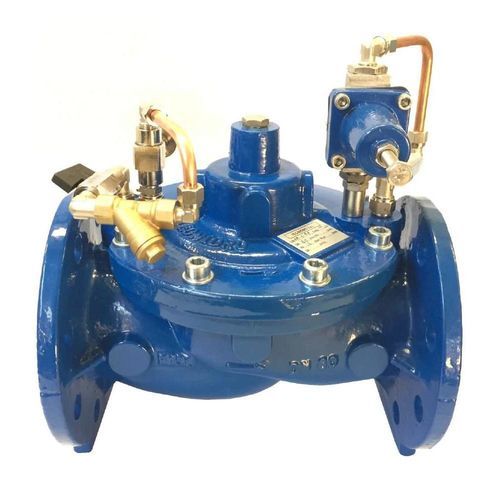

Hydromodul-C Pressure Reducing Valve is a pilot-operated control valve designed to reduce and stabilize downstream pressure in waterworks and irrigation systems. It combines a low-pressure-loss globe body with options for cavitation resistance and in-line maintenance access.

Key features

• High-hydrodynamics globe body without stagnation pockets for low pressure loss.
• Full unobstructed flow port (no spokes or grids) to reduce clogging and simplify maintenance.
• Plunger shaft fully guided; plunger guide independent of seat; plunger disc and seat geometry designed to mitigate cavitation risk.
• Optional removable stainless-steel seat for enhanced cavitation resistance.
• Optional energy-dissipating cage obturator can be fitted without modifying the valve to dissipate higher pressure drops and stabilize opening.
• Return spring located outside the flow path to minimize turbulence and fouling.
• Designed for easy maintenance: internal components accessible without removing the valve from the pipeline; pilot-circuit maintenance possible while valve is operating; all pressure/command connections on the valve cover.
• Optional drain plug in valve bottom for full drainage (useful in frost conditions).
• Main pilot pressure gauge included for calibration; additional gauges available on request.
• Valve functions can be modified or expanded via simple pilot-circuit changes.

Technical specifications

• Standard body material: ductile cast iron GS500 / GGG50 (carbon steel available on request).
• Coating: 200°C furnace polyester powder paint, minimum thickness 250 μm.
• Shaft and return spring: stainless steel.
• Cover fastenings: stainless steel bolts.
• Diaphragm: nylon-reinforced Buna-N.
• Plunger seal disc: anti-abrasion polyurethane.
• Flange-to-flange standard: UNI-EN 558-1, DIN 3202 series F5.
• Flange drilling: ISO PN10-16; ANSI 150-300 compatibility on request.
• Suitable for use with water intended for human consumption (DM174 / GU166 / DE98/83CE).

Applications

• Irrigation systems
• Municipal water distribution and waterworks
• Industrial water networks

Maintenance & options

• In-line maintenance without valve removal from pipeline.
• Pilot-circuit serviceable while valve remains in operation.
• Optional removable stainless-steel seat and dissipating cage for high-pressure-drop duties.
• Drain plug for complete bottom drainage in freezing conditions.
• Additional pressure gauges and custom flange drilling available on request.

Documentation

• Datasheet: HM-C-RP2M-ITA_ENG-v02.pdf (1.66 MB) — technical datasheet with dimensions, materials and performance curves.
