Control valve HM-C-SS

irrigationhydraulicelectric

The HMC-SS Hydromodul-C electronic control valve combines a modulating, line-pressure-driven hydraulic main valve with electronic control to vary the main valve opening according to signals from a dedicated electronic controller. It is designed for fully automatic regulation in irrigation and waterworks applications, providing pressure, flow, leakage and level control.

Control functions

• Pressure control
• Flow control
• Leakage control
• Level control

Features and benefits

• Line-pressure driven, independent operation — fully automatic
• Solenoid controlled with low power consumption
• Compatible with wide ranges of pressures and voltages
• Available as Normally Open (NO) or Normally Closed (NC)
• Linear position transducer for valve position feedback
• In-line service design for easy maintenance
• Optional stainless steel raised seat for cavitation resistance
• Flexible design allowing easy addition of features and accessories

Operation

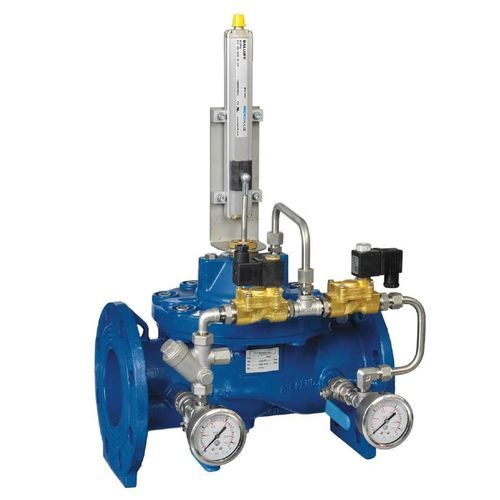

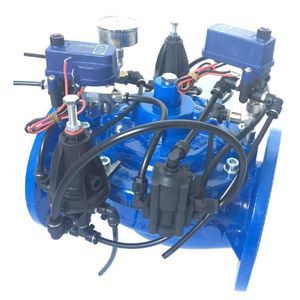

The HMC-SS is equipped with two 2-way solenoid pilots whose interaction determines the main valve opening as commanded by the electronic controller. The upstream solenoid applies pressure to the upper control chamber to move the diaphragm actuator toward closed; the downstream solenoid vents the upper control chamber to move the main valve toward open. Adjustable needle valves regulate opening and closing speeds, and valve position is provided by an analog/linear transducer. When pipeline water is contaminated (corrosive or debris-laden), an external control fluid can be used for the control circuit.

Technical specifications

• Series: Hydromodul-C
• Typical product reference: HMC-SS (electronic control variant)
• Actuation: two 2-way solenoid pilots (upstream and downstream)
• Position feedback: analog / linear position transducer
• Speed control: adjustable needle valves for opening and closing
• Operation: line-pressure-driven, fully automatic
• Solenoid options: low power consumption; supports wide voltage ranges
• Configurations: Normally Open (NO) and Normally Closed (NC) available
• Service / maintenance: in-line service design for easy maintenance
• Materials / options: stainless steel raised seat available (cavitation resistant)
• Control fluid: pipeline water or external control fluid for contaminated pipelines
