Irrigation valve HM-C-SP3B

hydraulicmanualnylon

Overview

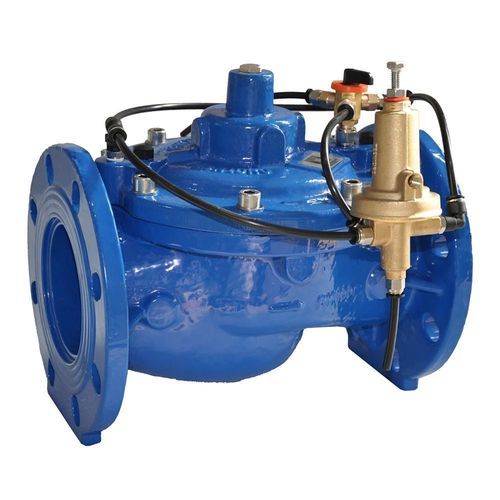

Hydromodul-C Pressure Support Valve (Tecnidro) is a pilot-operated control valve designed to maintain a minimum upstream pressure in waterworks and irrigation systems. It delivers high hydraulic performance, optional cavitation resistance and simplified maintenance access.

Key features

• High hydrodynamic globe-body design without stagnation pockets (low pressure loss)
• Body material: ductile cast iron GS500/GGG50 (carbon steel available on request)
• 200°C furnace polyester powder coating, minimum 250 μm thickness
• Plunger shaft fully guided for stable movement
• Plunger disc and seat shaped to reduce cavitation risk
• Plunger shaft guide independent from the seal seat
• Removable stainless steel seat optional for enhanced cavitation resistance
• Obstacle-free full port for unobstructed flow
• No spokes or grid across the closing passage to reduce clogging and simplify maintenance
• Optional dissipating cage obturator can be fitted without valve modification to stabilize opening under high differential pressure
• Stainless steel shaft and return spring (return spring located outside the flow path)
• Stainless steel bolts fastening cover to main valve body
• Nylon-reinforced Buna-N diaphragm
• Anti-abrasion polyurethane plunger seal disc
• Design allows internal access for maintenance without removing the valve from the pipeline
• Control connections are routed only through the valve cover; no direct connections to the main body
• Pilot circuit maintenance possible while valve remains in service
• Bottom drain plug optional for total drainage in frost conditions
• Main function pressure gauge for pilot calibration included; additional gauges available on request
• Valve functions can be modified or extended by simple pilot circuit changes

Technical specifications

• Manufacturer: Tecnidro
• Model / Series: Hydromodul-C
• Product type: Pressure support / control valve for waterworks and irrigation
• Body material: ductile cast iron GS500 / GGG50 (carbon steel on request)
• External finish: 200°C furnace polyester powder painting, minimum 250 μm guaranteed thickness
• Diaphragm material: nylon reinforced Buna-N
• Plunger seal: anti-abrasion polyurethane
• Shaft and return spring: stainless steel (return spring located outside flow path)
• Optional features: removable stainless steel seat, dissipating cage obturator, bottom drain plug, optional pressure gauge
• Documentation: Technical Data Sheet (PDF available)
• Product categories: Hydromodul C Control Valves — Aqueducts / Irrigation
• Stock status: in stock
