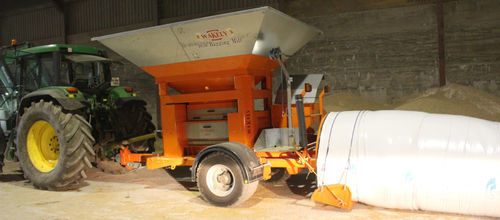

Bean mill 1030

grainfor animal feedbarley

Product overview
The Contractor Mill 1030 is built for on‑site grain contractors, combining a mobile undercarriage for long‑distance travel with robust components for operation over rough terrain. Integrated 400 L applicators accept alkaline or acidic preservatives for dry rolling, flat rolling, crimping and grinding operations. Applicator flow is adjustable to apply a range of minerals and proteins.

Capabilities and operation
All combinable crops (grain, beans, peas, maize, oats, barley, etc.) are processed by 1000 x 300 mm fluted solid chilled rolls designed for extended service life. Routine maintenance is simplified by central greasing points and easy access to bearings. After processing, the mill can be quickly power washed and drained via dedicated ports to reduce downtime. Throughput can be recorded by volume or weight to produce customer receipts. Multiple discharge options are available: conveyor, elevator, auger or bagging. Required power: 120 Hp.

Performance examples

• Output 30 tonnes — crimping maize (28% moisture), lightly bruised sample.
• Output 26 tonnes — dry rolling barley (16% moisture), broken sample.
• Output 18 tonnes — flat rolling barley (19% moisture), flat rolled sample.
• Output 25 tonnes — crimping maize (28% moisture), lightly bruised sample.

Features

• No roll‑to‑roll contact.
• 1000 x 300 mm precision balanced solid chilled rollers, hardness 50–53 HRC.
• Available as mobile PTO or PTO static versions.
• Different roll differentials available depending on target animal.
• Various grain discharge options.
• Double row spherical bearings in heavy‑duty plummer blocks on roll shaft.
• Trough auger Ø 250 mm, length 3 m.
• Hopper capacity 3.0 tonne (maize) with viewing ports.
• Cast helical gears immersed in oil drive the rolls.
• Spring roll tension.
• Magnet tray on all machines.
• Supplied with T‑8 PTO shaft with shear bolt & overrun.
• Sound suppression system to reduce vibration.
• Weight 2420 kg.
• One‑touch operator controls; no spanners/tools required for operation.
• Minimum roll gap maintained at 0.08 mm.

Technical specifications

• Model name: Contractor Mill 1030
• Integrated applicator capacity: 400 Litres (alkaline or acidic preservatives)
• Roll size: 1000 x 300 mm solid chilled rollers
• Roll hardness: 50–53 HRC
• Typical outputs: up to 30 tonnes (crimping maize 28% moisture); 26 tonnes (dry rolling barley 16% moisture); 18 tonnes (flat rolling barley 19% moisture)
• Drive options: mobile PTO or PTO static
• Power requirement: 120 Hp
• Trough auger: 250 mm diameter, 3 m length
• Hopper capacity: 3.0 tonne (maize) with viewing ports
• Bearing type: double row spherical bearings in heavy‑duty plummer blocks
• Gear type: cast helical gears, oil immersed
• PTO shaft: T‑8 with shear bolt & overrun
• Machine weight: 2420 kg
• Minimum roll gap: 0.08 mm
