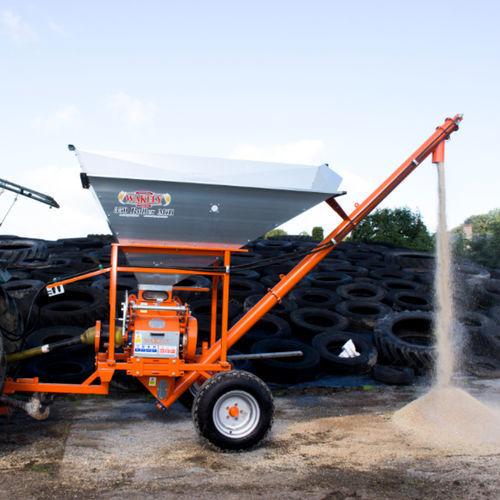

Grain mill 0350

for animal feedcornwheat

Overview A fast, flexible machine designed for farmers and small contractors. Intuitive and economical to operate. Smooth and quiet in operation. Typical farm throughput: 5–6 tonnes per hour; higher throughput for contract work is achievable.

Designed for farmers The Wakely 0350 crimper and dry roller is a light, fast and economical machine. Easy to set up, it grinds, crimps or rolls with minimal maintenance. It combines Wakely quality and durability with a price suited to individual farmers and small contractors.

The Wakely Advantage Fast setup, simple operation and economical running. No metal-to-metal contact in key areas for smooth, quiet operation. Flexible and fast enough for small-scale contract work. Robust design and low maintenance ensure season after season operation.

Main features

• Easy installation & setup
• Output examples: 22 t/h crimping, 18 t/h dry rolling
• Alternative farm reference: 5–6 t/h
• Hopper capacity: 2.5 tonnes (maize)
• Hydraulically powered, sensor-controlled calculator
• Each revolution delivers 12 kg
• Parallel roll adjustment: spring or hydraulic tensioning
• High-quality precision balanced solid chilled rollers (800 × 300 mm)
• Over-sized spherical roller bearings
• Working surface hardness: 50–54 Rockwell
• Grease-immersed gear drive between rollers
• Trough auger belt driven for strength and reliability
• Crimping port located above mixing section of auger
• 3.3 metre discharge elevator
• Different flute types available for different applications
• Designed to crimp, roll, flake and grind all types of animal feed
• Sound suppression system for quiet operation
• Magnet magazine to extract stray metal debris
• Rubble separator to remove stones, sticks and foreign objects

Applications and results Suitable for ground wheat, malt barley, mixed flaked grains and other feedstuffs. Delivers consistent, clean and nutritious feed products.

Technical specifications

• Model: Wakely 0350
• Roller dimensions: 800 × 300 mm (precision balanced solid chilled rollers)
• Working surface hardness: 50–54 Rockwell
• Hopper capacity: 2.5 tonnes (maize)
• Throughput examples: 22 t/h (crimping), 18 t/h (dry rolling); farm reference 5–6 t/h
• Each revolution throughput: 12 kg
• Discharge elevator length: 3.3 metres
• Drive: grease-immersed gear drive between rollers; trough auger belt driven
• Roll adjustment: parallel adjustment with spring or hydraulic tensioning
• Controls: hydraulically powered, sensor-controlled calculator and flow control adjustment
• Features: crimping port above mixing auger, sound suppression system, magnet magazine, rubble separator
• Suitable operations: crimping, dry rolling, flaking and grinding of animal feed
