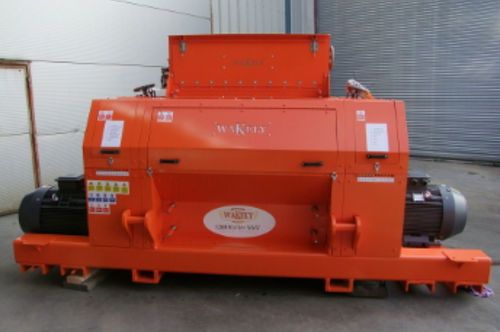

Bean mill 1260

grainfor animal feedwheat

Product overview
A high-volume roller mill engineered for feed compounders and industrial feed processing. Designed for continuous operation with minimal maintenance. Smooth and quiet operation with no metal-to-metal contact between rollers; fast, efficient and flexible for varied cereal and pulse rolling requirements.

Designed for Feed Compounders
The Wakely 1260 is specified to meet the operational demands of feed mills and industrial users. Simple to operate, quick to adjust and built for sustained throughput with low maintenance intervals.

Wakely model features
Quality design and component selection ensure consistent results and long service life; components are chosen for wear resistance and maintainability.

Main features

• Easy installation and setup
• Output: 50 tonnes per hour (dry rolling barley at 16% moisture, producing a broken sample)
• Output: 27 tonnes per hour (flat rolling barley at 20% moisture, producing a flat rolled sample)
• Hydraulically powered system with sensor-controlled calculator
• 1200 x 600 mm precision balanced solid chilled rollers (50–53 HRC)
• Double-row spherical bearings in heavy-duty plummer blocks on roll shaft
• Electric drive: 2 x 45 kW or 2 x 55 kW depending on application
• Hydraulic roll tension
• Centralised greasing system
• Sound suppression system for quiet operation
• Machine weight approximately 10,000 kg
• Suitable for rolling oats, barley, wheat, beans

Available options and ancillary equipment

• Selection of hoppers, augers and grain cleaners (S003) and associated equipment
• Various roll flutes available depending on sample required (multi-purpose flutes available)
• Rubble separator and rubble catcher to remove stray metal, stones, sticks and debris
• Magnet magazine to extract stray metal debris and protect rollers
• Sound suppression and access panels for maintenance

Operation and control
One-touch operator controls requiring no special tools. Weight-based control unit provides accurate regulation with options for real-time or historic reporting. Minimum maintained gap between rolls: 0.08 mm.

Applications / Product outputs

• Dry rolling and flat rolling of cereals and pulses
• Ground wheat, flat-rolled beans, mixed flaked grains, kibbled maize
• Can be used as a stand-alone machine or integrated into a complete processing line

Technical specifications

• Model: Wakely 1260
• Roller size: 1200 x 600 mm solid chilled rolls
• Roll material hardness: 50–53 HRC
• Drive options: 2 x 45 kW or 2 x 55 kW motors (application dependent)
• Minimum roll gap: 0.08 mm
• Output (example): up to 50 t/h dry rolling barley (16% moisture)
• Output (example): up to 27 t/h flat rolling barley (20% moisture)
• Weight: ~10,000 kg
• Bearings: double-row spherical bearings in heavy-duty plummer blocks
• Features: hydraulic roll tension, central greasing, sound suppression, magnet magazine, rubble separator
• Options: hoppers, augers, grain cleaners, various roll flutes
