Roller mill 0830

grainfor animal feedwheat

Overview

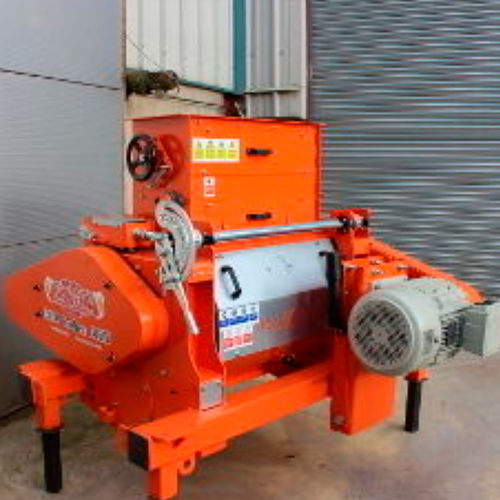

The Wakely 0830 is a mobile or electric crimper/dry rolling mill designed for contractors, farmers and feed industry operators. It delivers consistent crimping, dry rolling, flaking and grinding of a wide range of grains and feed materials while remaining easy to operate and maintain.

The Wakely Advantage
One‑touch levelling and quick setup reduce downtime. The design avoids metal‑to‑metal contact for smooth, quiet operation and low wear. Robust construction and simple maintenance keep the unit reliable for continuous agricultural and contract use.

Main capabilities and benefits

• High throughput with minimal maintenance requirements
• Suitable for contractors, co‑operatives, feed compounders and on‑farm use
• Designed for prolonged daily operation
• Simple, fast adjustment and controls for precise output and particle size
• Consistent rolling across grain sizes for uniform feed quality
• Durable components for long service life and low running costs
• Accurate alkaline/additive applicator for controlled dosing

Additional product features (operational and handling)

• Magnet magazine removes stray metal debris to prevent stoppages and extend roller life
• Rubble separator ejects metal, stones and sticks for a clean product
• Rubble catcher automates basic grain cleaning
• Pin feeders stage grain feed for consistent throughput
• Sound suppression system for quieter operation on site

Some of the Wakely 0830 main features

• Quick and straightforward installation and setup
• Output: ~22 tonnes per hour (TPH) crimping; ~18 TPH dry rolling
• Hopper capacity: 2.5 tonnes (maize)
• Hydraulically powered, sensor‑controlled feed calculator
• Each revolution delivers approximately 12 kg
• Parallel roll adjustment: spring or hydraulic tensioning
• Flow control adjustment for consistent feed rate
• High‑quality precision balanced solid chilled rollers (800 x 300 mm)
• Over‑sized spherical roller bearings
• Roller working surface hardness: 50–54 Rockwell
• Grease‑immersed gear drive between rollers
• Trough auger belt‑driven for strength and reliability
• Crimping port located above the mixing section of the auger
• 3.3 m discharge elevator for extended discharge range
• Interchangeable flute types available for different applications
• Configured to crimp, roll, flake and grind multiple feed materials

Ideal uses and markets

• Contractors and co‑operatives needing a self‑contained mobile mill
• Feed compounders and medium industrial mills seeking a reliable midsized grinder
• Applications: crimping maize, rolling wheat, producing flaked grains, malt barley processing and recycling/grinding operations

Technical specifications

• Model / series: Wakely 0830
• Type: Mobile PTO‑powered mill or electric roller grinder (mobile or electric configurations)
• Output capacity: ~22 TPH (crimping); ~18 TPH (dry rolling)
• Hopper capacity: 2.5 tonnes (maize)
• Roller dimensions: 800 x 300 mm (precision balanced solid chilled rollers)
• Roller working surface hardness: 50–54 Rockwell
• Roller drive: grease‑immersed gear drive
• Bearing type: over‑sized spherical roller bearings
• Adjustment: parallel roll adjustment (spring or hydraulic tensioning)
• Auger drive: belt‑driven trough auger
• Discharge elevator length: 3.3 metres
• Each revolution throughput: ~12 kg
• Power options: PTO (mobile) or electric (industrial grinder variant)
• Key features: magnet magazine, rubble separator, pin feeders, sound suppression, alkaline/additive applicator
