Bean mill 0130

grainfor animal feedwheat

Product summary

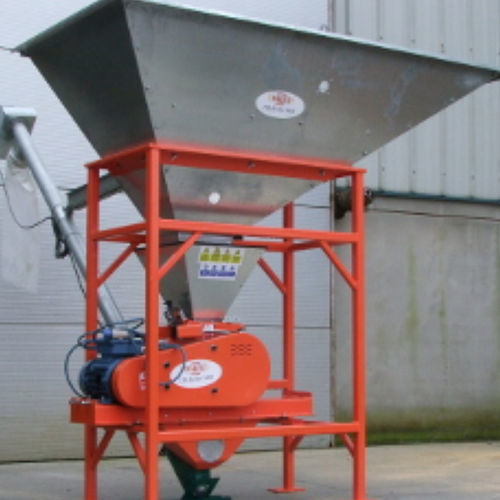

The Wakely 0130 Roller Grinder Mill is a compact, purpose-built machine for on‑farm and small contractor feed processing. It delivers controlled rolling and grinding across a range of grains and pulses while minimising operator intervention and maintenance requirements.

Designed for
Processing feed for monogastric animals (pigs and poultry). Suitable for oats, barley, wheat, maize, beans and malted barley. Configurable roll flute patterns and roll gap settings allow production of flat rolled, dry rolled, flaked or ground samples to match species and feed formulations.

The Wakely advantage

• Quick setup and straightforward operation optimised for on‑site farm use.
• No metal‑to‑metal contact in operation for smooth, low‑noise performance and reduced wear.
• Consistent results across variable grain sizes thanks to precision chilled rolls and controlled grain feed.
• Robust construction and accessible maintenance points to limit downtime.
• Accurate, one‑touch operator controls for fast adjustments and reduced waste.
• Integrated stray‑metal and debris removal systems to protect rolls and ensure clean samples.

Main features and capabilities

• Produces sample types from flat rolled to dry rolled and from coarse to fine grind suitable for poultry or pigs.
• Typical outputs (examples): ~1.0 tonne/hr barley (12% moisture) fine; ~1.2 tonne/hr barley (12% moisture) coarse; ~1.6 tonne/hr malted barley (4% moisture) coarse.
• High‑quality precision balanced solid chilled rollers, 255 mm diameter; hardness 50–53 HRC.
• Heavy‑duty flanged bearings on rolls and oversized spherical roller bearings for durability.
• Convenient access panels at key service points and centralised greasing for maintenance efficiency.
• 40 kg overflow hopper option; full selection of hoppers and augers available for electric configurations.
• Spring roll tension with minimum roll gap maintained at 0.08 mm; multiple flute patterns available.
• Electric drive configuration uses 4.0 kW motors; one‑touch controls and tool‑free typical adjustments.
• Sound suppression system for reduced operating noise; approximate weight 280 kg.

Applications
Rolling and grinding of malted barley, barley, wheat, oats, maize and beans for production of feed for poultry and pigs. Suitable for small farms and contractors requiring on‑site grain processing and sample production.

Technical specifications

• Model: Wakely 0130
• Product type: Roller grinder / roller mill for farmers and small contractors
• Roller specification: 0130 × 255 mm solid chilled rollers, hardness 50–53 HRC
• Roll flute options: Multiple flute patterns (for dry rolled, flat rolled or flaked samples)
• Bearings: Heavy‑duty flanged bearings on rolls; oversized spherical roller bearings
• Hopper: 40 kg overflow hopper (option)
• Drive: Electric drive (4.0 kW motors) when supplied as electric machine
• Output examples: ~1.0 t/hr barley (12% moisture) fine; ~1.2 t/hr barley (12% moisture) coarse; ~1.6 t/hr malted barley (4% moisture) coarse
• Weight: approx. 280 kg
• Maintenance: Centralised greasing; convenient access panels
• Operator controls: One‑touch controls; fast, accurate adjustments (no spanners required for typical adjustments)
• Noise: Sound suppression system
• Minimum roll gap: 0.08 mm
• Options: Selection of hoppers, augers and roll flute configurations
