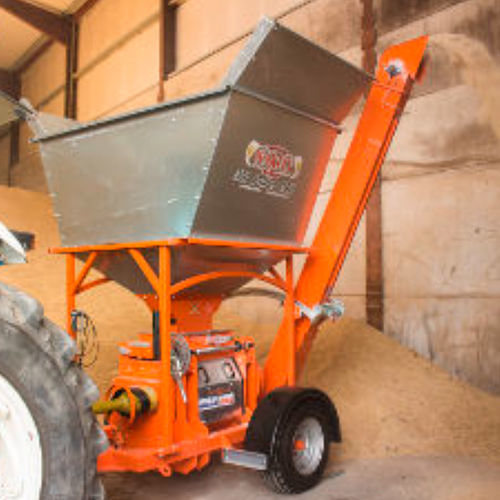

Grain mill 0510

for animal feedwheatbarley

Product overview
The Wakely 0510 dry roller mill is a high-performance, low-maintenance machine engineered for milling, crimping, flaking and grinding cereals and similar feed materials. Originally developed for millers, farmers and co‑ops, the 0510 is also used in industrial and recycling environments where reliability and quiet operation are required. The machine offers fast setup, intuitive controls and no metal‑to‑metal contact for smooth, low‑noise operation.

Variants and related models

• 0510 Mobile Roller Mill: PTO-driven mobile roller mill for on‑farm use; handles grain moisture from 4% to 40% and enables flexible deployment.
• 0510 Ration Mill: Multipurpose mill for feed formulation with ports for adding minerals, protein, molasses or additional grains.
• 0510 Roller Grinder: Entry-level electric roller grinder for industrial milling — reliable, efficient and low maintenance.
• 0510 Roller Mill (Electric): Electric configuration for industrial feed compounders requiring a compact, dependable roller mill.

The Wakely Advantage
Simple one-touch levelling reduces setup time. No metal-to-metal contact ensures quiet, vibration‑reduced operation. Robust construction, precision components and minimal daily maintenance keep the unit productive over long service periods.

Main features

• Output: 10 tonnes per hour
• Quick and straightforward installation and setup
• Parallel roll adjustment: spring‑tensioned or hydraulic tension options
• Multiple flute types available for application-specific processing
• Fast, user-friendly flow control adjustment
• High-quality, precision-balanced solid chilled rollers (51×300 mm)
• Over-sized spherical roller bearings
• Roller working surface hardness: 50–54 Rockwell
• Two 11 kW motors supplied
• Capable of crimping, rolling, flaking and grinding various feedstuffs
• Sound suppression system for quiet operation
• Operable manually or integrated into fully automated lines
• Magnet magazine to extract stray metal debris and prevent stoppages
• Rubble/separator removes stones, sticks and other debris for clean output

Applications

• Ground wheat — consistent, high-capacity milling for feed production
• Ground glass — proven performance for recycling and material reprocessing
• Mixed flaked grains — flexible processing for compound feed and animal nutrition
• Malt barley — accurate flaking for brewing or feed applications

Notes
Economical, high-performing mill available in mobile (PTO) or electric variants. Configurable with hoppers, elevators and multiple discharge options to match on‑site processes.

Technical specifications

• Model: 0510 (Wakely 0510)
• Typical output: 10 tonnes per hour
• Roller working surface hardness: 50–54 Rockwell
• Roller type: Precision-balanced solid chilled rollers (51×300 mm)
• Roller adjustment: Parallel roll adjustment — spring or hydraulic tensioning
• Drive: Two 11 kW motors supplied
• Functions: Crimp, roll, flake and grind various feedstuffs
• Bearings: Over-sized spherical roller bearings
• Noise control: Sound suppression system
• Operation: Manual or fully automated integration
• Foreign object handling: Magnet magazine and rubble separator for removal of metal, stones and debris
