Animal feed mill 0250

wheatbarleyfor malt

Overview

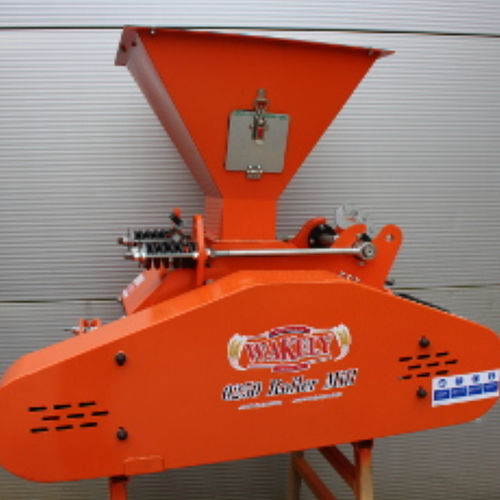

Mobile roller mill designed for farmers and small contractors to crimp, roll, flake and grind a wide range of animal feeds (pigs, poultry and other livestock). Quick to set up, quiet in operation and available in stainless steel construction for corrosive environments.

Key benefits

• Fast setup and simple operation for on‑farm or contract use
• Economical operation with low maintenance requirements
• No metal-to-metal contact between key components for smooth, quiet and efficient running
• Adaptable for indoor or outdoor configurations
• Optional stainless steel construction for hygiene and corrosion resistance

Main features

• Output: up to 22 tonnes per hour (TPH) crimping; 18 TPH dry rolling
• Hopper capacity: 2.5 tonnes (maize)
• Hydraulically powered sensor-controlled dosing/control system
• Approx. 12 kg delivered per revolution
• Parallel roll adjustment: spring or hydraulic tensioning
• Flow control adjustment for consistent feed rate
• Solid chilled, precision balanced rollers (800 x 300 mm); fully fluted options available
• Working surfaces hardened to 50–54 HRC (Rockwell)
• Over-sized spherical roller bearings for heavy-duty use
• Grease-immersed gear drive between rollers
• Trough auger belt driven for strength and reliability
• Crimping port located above the mixing section of the auger
• 3.3 metre discharge elevator for extended discharge range
• Interchangeable flute types for dry or flat rolling applications
• Magnet magazine to remove stray metal and protect rollers
• Rubble separator to remove stones and debris for a clean product
• Sound suppression system for quiet operation

Applications
Designed to process ground wheat, kibbled maize, malt barley, mixed flaked grains and other cereals into crimped, rolled, flaked or ground feeds. Suitable for farm use, small contractors and small-scale contract milling.

Technical specifications

• Model: Wakely 0250 (mobile roller mill)
• Roller dimensions: 800 x 300 mm (solid chilled; fully fluted options)
• Output: 22 TPH crimping; 18 TPH dry rolling
• Hopper capacity: 2.5 tonnes (maize)
• Drive: grease-immersed gear drive between rollers; trough auger belt driven
• Bearings: over-sized spherical roller bearings
• Surface hardness: working surfaces 50–54 Rockwell (HRC)
• Adjustment: parallel roll adjustment (spring or hydraulic tensioning); flow control adjustment
• Discharge elevator length: 3.3 metres
• Additional modules: magnet magazine, rubble separator, crimping port above mixing auger, sound suppression system
• Construction options: stainless steel version available
