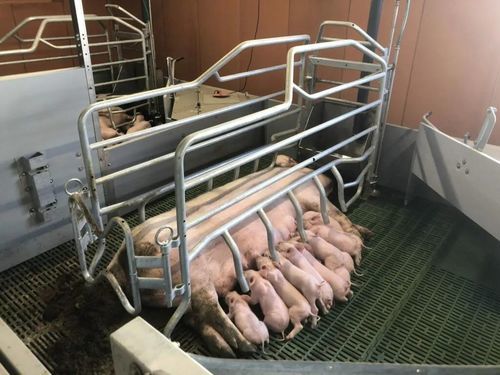

Pig farrowing stall PROTEK +

anti-crush protection

Overview Our PROTEK + stall combines simplicity and efficiency. It provides easy access to the interior of the stall, clear visibility over the pen and improved comfort for the sow and her piglets. Compared with the PROTEK, the PROTEK + features a combined MIK® plastic floor and Schonlau® cast-iron slats to enhance animal comfort and hygiene.

Advantages

• Generous space for sow and piglets to facilitate maternal behaviour
• Ergonomic side panels for safe handling and animal flow
• Reduced crushing risk thanks to Schonlau® cast-iron slats and anti-crush bar
• Tubular frame permitting free movement of the sow (angled top section, locked at partitions)
• Excellent visibility with low 50 cm dividers for easier monitoring
• Robust rear passage gate, folding option available

Description

• MIK® plastic floor supporting sows up to 350 kg — high resistance and easy to clean
• Schonlau® cast-iron slats with rounded edges to limit injuries
• 50 cm-high PVC divider, resistant to impacts and wear
• 1 m-high PANELTIM® polypropylene upper enclosure, ±10 kg/m², 50 mm thick, fully hermetic, resistant to shocks and ammonia
• Durable, hygienic, anti-corrosion stainless-steel side-panel feet

Technical specifications

• Model name: PROTEK +
• Type: free-movement farrowing pen with a cold zone for sows
• Floor: MIK® plastic floor + Schonlau® cast-iron slats
• Plastic floor load capacity: supports sows up to 350 kg
• Divider height: 50 cm (low dividers for visibility)
• Upper enclosure: 1 m PANELTIM® polypropylene, 50 mm thick, ±10 kg/m², fully hermetic, ammonia-resistant
• Materials: PVC divider parts, polypropylene panels, stainless-steel side-panel feet
• Frame: tubular frame allowing free movement; angled top section, locked at partitions
• Anti-crush features: anti-crush bar and Schonlau® cast-iron slats
• Optional: folding rear passage gate
