Electric heating plate

for pigs

Product overview

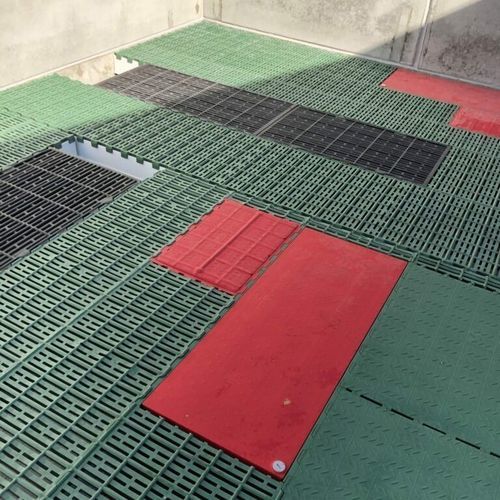

Electrical heating plates (plastic with fibreglass) and hot-water heating plates (polypropylene) designed to be integrated into the floor in place of slats. Intended to create a localised comfort zone to warm piglets in farrowing pens. Plates can be used alone in individual pens or placed under a nest to maintain a stable, homogeneous temperature.

Benefits for piglets
Heating plates are recommended for piglets up to 21 days as they provide a dedicated creep area, keep the heat source away from the sow, reduce the risk of injuries from broken lamps and offer a broader, more even heat surface. Their use contributes to reducing pre-weaning mortality.

Advantages
Electric heating plates

• Create a local comfort zone for piglets
• Even heat distribution over the full surface
• Minimal heat loss to the atmosphere and no accumulation of piglets’ body heat
• Low power consumption
• Low maintenance requirements

Hot water heating plates

• Built into the floor without adding extra thickness
• Simple assembly on mountings between slats
• Easy to clean
• Anti-slip top surface
• Mountings supplied
• Can be adapted for weaning
• Create a comfort zone for piglets
• Low consumption

Description
Electric heating plates

• Available sizes: 1.6 x 0.4 m; 0.4 or 0.5 x 1.2 m; 0.6 x 1.2 m
• Electric supply: 230 V / 50 Hz (plug can be positioned left or right)
• Body material: plastic with fibreglass
• Electric cord supplied with stainless steel protection

Hot water heating plates

• Available sizes: 0.4 or 0.5 x 1.2 m; 0.6 x 1.2 m; 0.5 x 1.6 m
• Thickness: 50 mm
• Plate body material: polypropylene
• Recommended filling water temperature: 10°C
• Maximum water circuit temperature: 50°C
• Heating power options: 200 W, 228 W, 310 W (depending on plate size)
• Water volume options: 25 L, 30 L, 33 L (depending on plate size)

Technical specifications

• Product type: Electric heating plates (plastic + fibreglass) and hot-water heating plates (polypropylene)
• Electric supply (electric plates): 230 V / 50 Hz, plug left or right
• Electric cord: stainless steel protection
• Hot-water plate thickness: 50 mm
• Hot-water filling temperature (recommended): 10°C
• Hot-water circuit maximum temperature: 50°C
• Heating power options (by size): 200 W, 228 W, 310 W
• Water volume options (by size): 25 L, 30 L, 33 L
• Anti-slip top surface (hot-water plates)
• Mountings supplied for installation between slats (hot-water plates)
