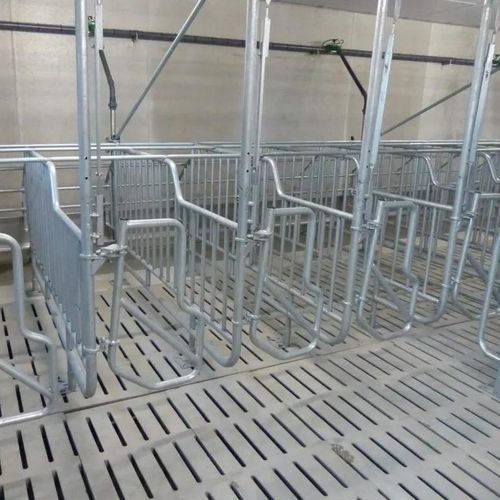

Pig gestation stall GEVILIB

adjustable

Product overview
The GEVILIB is designed to allow transition from insemination to gestation without moving animals. A collective controller operates the rear gate to select different functional positions for each feeding station.

Rear gate positions

• FREE: The gate swings; sows can enter and exit freely.
• FEEDING: The sow can enter the feeding station but cannot leave at will.
• BLOCKED: The sow can neither enter nor exit.
• STALL: The gate is locked inside the feeding station, making the GEVILIB operate as a traditional stall.

GEVILIB AIR (new)
An evolution of the GEVILIB controlled by a pneumatic actuator to centralize and automate opening/closing of feeding stalls. Key added advantages include:

• Centralized control of all feeding stations simultaneously.
• Reduced manual effort for operating refectories.
• Automation of door opening before meals for zootechnical benefits.
• Reduced competition thanks to synchronized triggering of the liquid feeding system.
• Preservation of forward-flow management by limiting movements in the gestation area when adjusting GEVILIB positions (favorable to biosecurity).
• Optimization of time spent on husbandry since animals are already at feeders when staff arrive.

Advantages

• Collective controller to operate all feeding stations simultaneously.
• Possibility to isolate a single feeding station to separate a sow.
• Transition from insemination to gestation without moving animals.
• Raised trough at the rear for improved air circulation, allowing the sow to breathe easily even when lying down.

Description / construction details

• Reinforced lower railings to prevent injuries to the sow.
• Trough higher at the rear to limit feed waste and facilitate cleaning.
• Upper railings reinforced with two bars above the sow.
• Hygienic, durable and anti-corrosion stainless-steel feet.

Characteristics / technical specifications

• Model name: GEVILIB.
• Function: transitional stall allowing insemination → gestation without moving animals.
• Rear gate: 4 operational positions (FREE, FEEDING, BLOCKED, STALL).
• Control: collective controller to actuate rear gate positions; optional pneumatic actuator for GEVILIB AIR variant.
• Trough: raised at rear to reduce feed waste and improve hygiene.
• Safety: reinforced lower railings to prevent injuries; upper railings reinforced with two bars.
• Materials: stainless-steel feet, hygienic and anti-corrosion.
