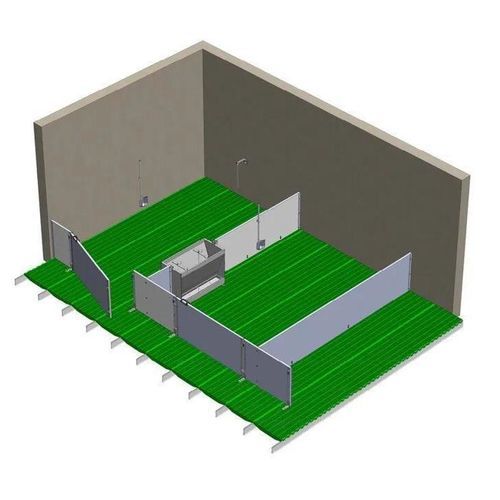

Pig weaning pen

with drinkerslatted floor

Product overview
Post-weaning rooms for piglets equipped with PVC facing panels and partition walls. Modular configuration for integration into existing buildings; designed for easy access, hygiene and routine handling on commercial farms.

Flooring combinations

• Rotecna plastic floor on fiberglass beams with concrete
• Rotecna plastic and cast-iron floor
• Rotecna plastic floor and galvanized steel bar/slatted (wire) slats

Key features

• Facing panels and dividers in PVC, thickness TH 35 mm, height HT 750 mm, light-grey colour
• Rotecna plastic and cast-iron floor options for differentiated lying and slurry zones
• High-resistance Rotecna plastic and concrete floor (135 kg/m²)
• Rotecna plastic floor with galvanized wire/slats option
• Non-slip aisle floor for safe movement of animals and staff
• Removable plastic island (butterfly hatch) to access pit
• Removable cast-iron slats for maintenance
• All-stainless-steel drinker for hygiene and durability
• Removable stainless-steel feeding trough with adjustment screws for precise feed delivery
• Removable blocking system to move and rotate the feeder for optimal washing
• Partition walls include a folding plastic handle placed on top of the panel to keep corridors clear during washing

Advantages

• Improved labour efficiency through modular handling and removable components
• Reduced animal movement and stress during post-weaning period
• Easy cleaning and maintenance thanks to PVC panels and plastic floors
• Better growth performance and welfare for piglets in separated zones
• Light-coloured PVC panels increase light in rooms
• Folding plastic handle simplifies washing operations and keeps corridors clear
• Plastic floor provides durability and lying comfort
• Plastic & cast-iron floor solution separates comfort area and slurry elimination zone

Technical specifications

• Panels: PVC, thickness TH 35 mm
• Panel height: HT 750 mm
• Panel colour: light-grey
• Plastic floor types: Rotecna plastic; Rotecna plastic on fiberglass beams with concrete; high-resistance Rotecna plastic (135 kg/m²)
• Cast-iron slats: removable cast-iron slats available
• Galvanized options: galvanized steel/wire slats
• Access: removable plastic island (butterfly hatch) to access pit
• Feeding troughs: removable stainless-steel feeding troughs with adjustment screws
• Drinkers: all-stainless-steel drinker
• Handles: folding plastic handle on partition walls to keep corridors clear during washing
• Cleaning: designed for easy cleaning due to PVC and plastic coatings
