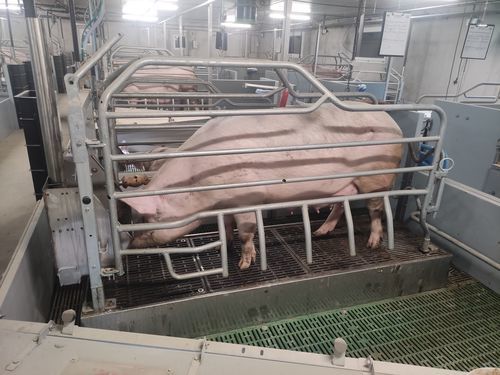

Pig farrowing stall PROTEK UP

anti-crush protectionwith sow liftslatted floor

Product overview
The PROTEK UP elevator farrowing stall is designed for sows with free movement. It provides easy access for stockpersons, improved visibility for monitoring sows and piglets, and reduced piglet crushing risk thanks to an anti-crush bar and a stable elevator mechanism.

Advantages

• Ample space for sow and piglets
• Reduced piglet crushing risk due to the anti-crush bar
• Tubular frame allowing free movement of the sow (angled top section, partitions locked)
• Low 50 cm dividers for improved visibility and monitoring
• Rear passage gate, folding option available
• Lift stability ensured by horizontal thrust from four cylinders

Technical description

• MIK® plastic floor rated for sows up to 350 kg
• Cast-iron slats
• 50 cm-high PVC low enclosure, impact- and wear-resistant
• 1 m-high PANELTIM® polypropylene high enclosure, ±10 kg/m², 50 mm thick, 100% hermetic, ammonia-resistant
• Stainless-steel side panel feet: anti-corrosion and hygienic

Technical specifications

• Model: PROTEK UP
• Stall type: elevator farrowing stall for sows with free movement
• Anti-crush bar to reduce piglet crushing risk
• Stall elevator with lift stability from four horizontal-thrust cylinders
• Floor: MIK® plastic floor rated for sows up to 350 kg
• Slats: cast-iron slats
• Low enclosure: 50 cm PVC, impact- and wear-resistant
• High enclosure: 1 m PANELTIM® polypropylene, 50 mm thick, ±10 kg/m², 100% hermetic, ammonia-resistant
• Frame: tubular frame with angled top section, partitions locked to allow free movement
• Side panel feet: stainless steel, anti-corrosion
• Rear passage gate: folding option available
