Farm building ventilation system EXATOP

Overview

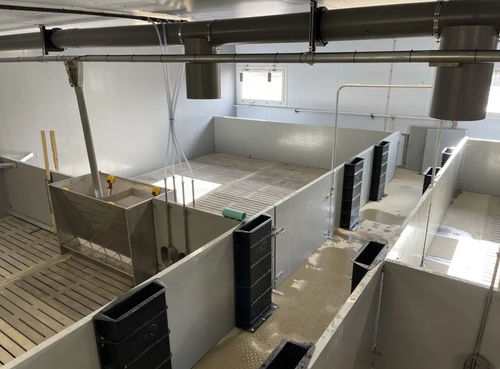

EXATOP combines two proven principles: the Swiss-style ventilation column and a ground‑coupled air exchanger (Canadian well). The system routes outside air through a duct beneath the floor, typically under circulation aisles. In winter the incoming air is preheated; in summer it is cooled. The preconditioned air then passes through the EXATOP column, which includes an internal damper actuated by a motorized linkage to open or close automatically based on room temperature, ensuring even air distribution per room.

Technical benefits

• Maintain a constant air exit velocity at the column outlet (recommended 5–6 m/s) to avoid drafts at animal level.
• Adaptable to all physiological stages; enables room‑by‑room ventilation and an independent health status per room.

Fire safety

• Air flow circulates within the concrete slab, eliminating on‑site combustion sources within the ducting.
• Air intake and exhaust occur at floor level, reducing air propagation into lofts or attics.

Sanitary safety

• Room‑by‑room ventilation control.
• Dedicated intake and exhaust per room to limit cross‑contamination.
• Secured air supply without competition between rooms.

Energy

• Air intake proportional to actual needs.
• Regulated temperatures through preconditioning.
• Cave effect: tempered incoming air in summer.
• System scalable to physiological stage and room size.
• Controlled ventilation reduces energy loss and optimizes operating cost.

Air quality

• Direct outside air intake: admits cleaner air and reduces dust in the circuit.
• Ventilation without drafts reduces respiratory illnesses in animals.
• Even air admission distribution regardless of external temperature.

Kits and EXATOP accessories

• Grilled door (commercial reference on product sheet).
• Deflector kit.
• Windbreaker.
• V2 damper kit for EXATOP column with linkage and arms.
• Motor adaptation kit with linear actuator.

Technical characteristics / specifications

• Commercial name: EXATOP.
• Principle: combination of Swiss column and ground‑coupled air exchanger (Canadian well) with airflow under slab/floor.
• Function: preheating of incoming air in winter; cooling in summer.
• Internal motorized damper with linkage for automatic opening/closing according to room temperature.
• Recommended air velocity at column outlet: 5–6 m/s.
• Room‑by‑room ventilation management with separate intake and extraction per room.
• Design aimed at limiting air propagation to lofts/attics and improving fire and sanitary safety.
• Adaptability: system suitable for different physiological stages and room sizes.
• Associated technical documents: EXATOP and KIT EXATOP technical sheets (PDF files available).
