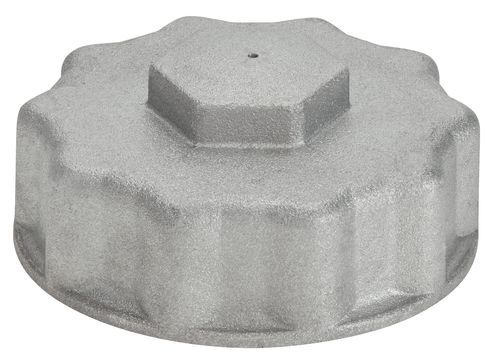

Breather plug TFES

Description
Female threaded plug with aluminium internal thread and free-breathing vent, supplied with gasket and suitable for large-capacity tanks. Ergonomic handle and can be locked using a hex key.

Additional information
Available with anodizing treatment on request.

Warning
The product is not designed to operate in an inverted position. Installation or testing in that configuration is not compliant with design specifications and may impair correct function.

Technical data - METRIC MB
MODEL | CODE | f | d | h | e | WEIGHT (g)
TFES1M | 1MTFE10A | 80 x 2 | 95 | 40 | 36 | 197

Characteristics / technical specifications

• Type: female threaded breather plug
• Model: TFES1M
• Code: 1MTFE10A
• Material: aluminium (internal thread)
• Thread: female (internal)
• Vent: free breather
• Gasket: included
• Handle: ergonomic
• Locking: possible with hex key
• Finish: anodizing available on request
• Application: suitable for large-capacity tanks
• Operating position: not intended for inverted use
• Dimensions f: 80 x 2; d: 95; h: 40; e: 36
• Weight: 197 g
