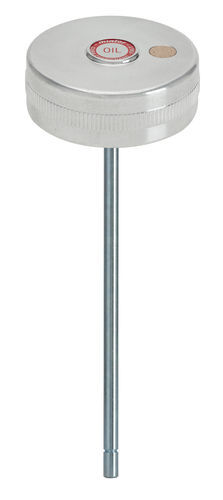

Breather plug TFES/ZA

Product overview
Plug with internal female thread in aluminium alloy for installation on sleeves with male thread. The spherical bronze filter (40 microns) built into the plug vents internal pressure and prevents ingress of foreign bodies during the intake stroke. Built-in dipstick; available in different lengths and can be supplied with minimum and maximum notches.

Options

• Available on request with anodizing treatment.

Usage note
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.

Technical Info - GAS ISO 228
TYPE | CODE OIL | CODE DIESEL | f | d | h | l | g | WEIGHT (g)
TFES/ZA0G | 1WFZA002 | 1WFZA003 | 1″ | 40 | 23 | 200 | 5 | 68
TFES/ZA1G | 1WFZA102 | 1WFZA103 | 1″ 1/4 | 50 | 23 | 250 | 5 |
TFES/ZA2G | 1WFZA202 | 1WFZA203 | 1″ 1/2 | 55 | 23 | 250 | 5 |
TFES/ZA3G | 1WFZA302 | 1WFZA303 | 2″ | 65 | 23 | 250 | 5 | 107

Technical Info - MB METRIC
TYPE | CODE OIL | CODE DIESEL | f | d | h | l | g | WEIGHT (g)
TFES/ZA4M | 1WFZA402 | 1WFZA403 | 60 x 2 | 65 | 23 | 250 | 5 |

Characteristics / technical specifications

• Material: aluminium alloy (plug body).
• Filter: spherical bronze filter, 40 microns, built into the plug (vents internal pressure and filters out foreign bodies during intake stroke).
• Dipstick: built-in dipstick; available in different lengths and can be supplied with minimum and maximum notches.
• Surface treatment: available on request with anodizing treatment.
• Operating orientation: not designed to operate in an inverted position; installation/testing inverted is not compliant with design specifications.
• Standards / Thread types covered: GAS ISO 228 and MB METRIC variants as per technical tables.
• Variant TFES/ZA0G — CODE OIL: 1WFZA002; CODE DIESEL: 1WFZA003; f: 1″; d: 40; h: 23; l: 200; g: 5; WEIGHT (g): 68.
• Variant TFES/ZA1G — CODE OIL: 1WFZA102; CODE DIESEL: 1WFZA103; f: 1″ 1/4; d: 50; h: 23; l: 250; g: 5; WEIGHT (g): not specified.
• Variant TFES/ZA2G — CODE OIL: 1WFZA202; CODE DIESEL: 1WFZA203; f: 1″ 1/2; d: 55; h: 23; l: 250; g: 5; WEIGHT (g): not specified.
• Variant TFES/ZA3G — CODE OIL: 1WFZA302; CODE DIESEL: 1WFZA303; f: 2″; d: 65; h: 23; l: 250; g: 5; WEIGHT (g): 107.
• Variant TFES/ZA4M — CODE OIL: 1WFZA402; CODE DIESEL: 1WFZA403; f: 60 x 2 (metric); d: 65; h: 23; l: 250; g: 5; WEIGHT (g): not specified.
