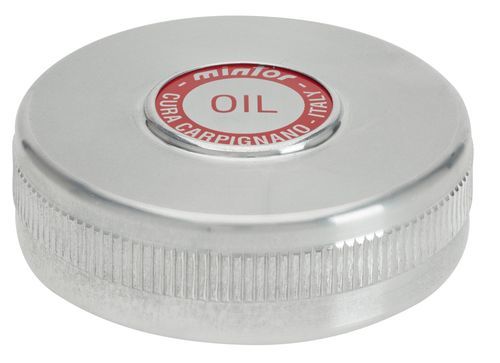

Filling plug TFE/Z

Product description
Female threaded plug in aluminium alloy with internal thread for use on sleeves with male thread.
Supplied untreated; custom wording available on request.
Anodizing available on request.

Technical Info - GAS ISO 228
TYPE | CODE OIL | CODE DIESEL | f | d | h | WEIGHT (g)
TFE/Z0G | 1WCPA002 | 1WCPA003 | 1" | 40 | 20 | 33
TFE/Z1G | 1WCPA102 | 1WCPA103 | 1" 1/4 | 50 | 20 | 34
TFE/Z2G | 1WCPA202 | 1WCPA203 | 1" 1/2 | 55 | 20 | 54
TFE/Z3G | 1WCPA302 | 1WCPA303 | 2" | 65 | 20 | 68

Technical Info - MB METRIC
TYPE | CODE OIL | CODE DIESEL | f | d | h | WEIGHT (g)
TFE/Z4M | 1WCPA402 | 1WCPA403 | 60 x 2 | 65 | 20 | 68

Characteristics / technical specifications

• Material: aluminium alloy (untreated plug).
• Application: for sleeves/connections with male thread.
• Surface treatment: supplied without treatment; anodizing available on request.
• Custom wording: optionally available on request.
• Standards / thread types: GAS ISO 228 and MB METRIC (see tables above).
• Available models and key dimensions/weights:
  • TFE/Z0G — f: 1" — d: 40 — h: 20 — Weight: 33 g — Code Oil: 1WCPA002 — Code Diesel: 1WCPA003
  • TFE/Z1G — f: 1" 1/4 — d: 50 — h: 20 — Weight: 34 g — Code Oil: 1WCPA102 — Code Diesel: 1WCPA103
  • TFE/Z2G — f: 1" 1/2 — d: 55 — h: 20 — Weight: 54 g — Code Oil: 1WCPA202 — Code Diesel: 1WCPA203
  • TFE/Z3G — f: 2" — d: 65 — h: 20 — Weight: 68 g — Code Oil: 1WCPA302 — Code Diesel: 1WCPA303
  • TFE/Z4M — f: 60 x 2 — d: 65 — h: 20 — Weight: 68 g — Code Oil: 1WCPA402 — Code Diesel: 1WCPA403
