Breather plug TRBFSC

filling

Product name
TRBFSC - Filling plug with breather and lock-holder

General description

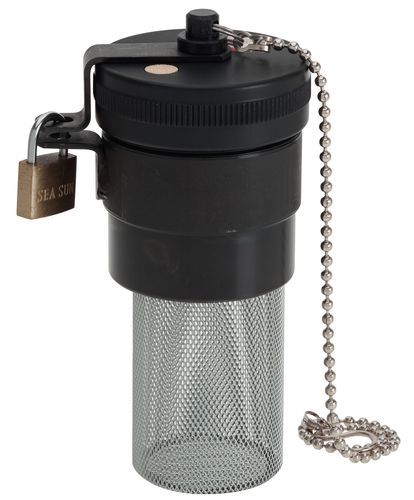

Sleeve in UNI C30 burnished steel welded to the machine cover or tank. Supplied with an extractable steel cartridge with 800 μm filtration. Female threaded cover in black anodized aluminium alloy with 40 μm spherical bronze breather filter. Optional locking device available on request.

Use limitation
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's correct operation.

Technical Info - GAS ISO 228
TYPE | CODE OIL | CODE DIESEL | THREAD | d | h | p | l | c | f | r | e | WEIGHT (g)
TRBFSC2G | 1BRFC201 | 1BRFC202 | 1" 1/2 | 55 | 51 | 15 | 85 | 40 | 45 | 45 | 6 | 232
TRBFSC3G | 1BRFC301 | 1BRFC302 | 2" | 65 | 58 | 24 | 85 | 50 | 57 | 50 | 6 | 444

Technical Info - MB METRIC
TYPE | CODE OIL | CODE DIESEL | THREAD | d | h | p | l | c | f | r | e | WEIGHT (g)
TRBFSC4M | 1BRFC401 | 1BRFC402 | 60 x 2 | 65 | 58 | 24 | 85 | 50 | 57 | 50 | 6 | 436

Characteristics / technical specifications

• Model: TRBFSC
• Sleeve material: UNI C30 burnished steel, welded to cover or tank
• Extractable steel cartridge with filtration: 800 μm
• Cover: female threaded, aluminium alloy, black anodized
• Breather filter in cover: spherical bronze, 40 μm
• Optional: supplied with lock on request
• Not suitable for inverted operation; installation/testing inverted is not compliant with design
• Available variants and key dimensions/weights:
  • TRBFSC2G — THREAD: 1" 1/2 — d: 55 — h: 51 — p: 15 — l: 85 — c: 40 — f: 45 — r: 45 — e: 6 — WEIGHT: 232 g
  • TRBFSC3G — THREAD: 2" — d: 65 — h: 58 — p: 24 — l: 85 — c: 50 — f: 57 — r: 50 — e: 6 — WEIGHT: 444 g
  • TRBFSC4M — THREAD: 60 x 2 — d: 65 — h: 58 — p: 24 — l: 85 — c: 50 — f: 57 — r: 50 — e: 6 — WEIGHT: 436 g
