Breather plug TCAR/LC

filling

General description

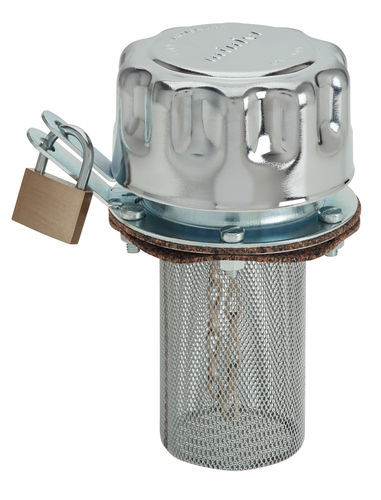

Filling plug with breather and oil pre-filter basket, manufactured entirely from chromed steel. Bayonet closure with integrated lock-holder. Supplied with slotted M6 screws and sealing gaskets for mounting. The air filter in the plug is available in 10 μ and 40 μ. Supplied with an extractable steel cartridge with a filtration degree of 800 μ.

Options
Lock available on request.

Warnings
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.

Table - Technical variants
TYPE | CODE | LT 1' (air) | FILTER | d | h | l | r | f | c | a | N. OF SCREWS | WEIGHT (g)
TCAR/LC 1080 C80 - Marchio | 1VTLC10A | 500 | 10 μ | 80 | 52 | 80 | 73 | 83 | 50 | 70 | 6 | 350
TCAR/LC1080 C150 - Marchio | 1VTLC20A | 500 | 10 μ | 80 | 52 | 150 | 73 | 83 | 50 | 70 | 6 | 327
TCAR/LC 4080 C80 - Marchio | 1VTLC30A | 700 | 40 μ | 80 | 52 | 80 | 73 | 83 | 50 | 70 | 6 | 325
TCAR/LC 4080 C150 - Marchio | 1VTLC40A | 700 | 40 μ | 80 | 52 | 150 | 73 | 83 | 50 | 70 | 6 | 335

Technical characteristics / specifications

• Material: chromed steel
• Closure: bayonet closure
• Lock-holder: integrated; lock available on request
• Includes breather and basket for oil pre-filtering
• Supplied with slotted M6 screws and fixing seals
• Air filter options: 10 μ and 40 μ
• Extractable steel cartridge with filtration degree: 800 μ
• Multiple variants (see table) differ by code, capacity (LT 1') and weight
• Not designed to operate in an inverted position; do not install/test inverted
