Filling plug TRBF/ZK

Product name

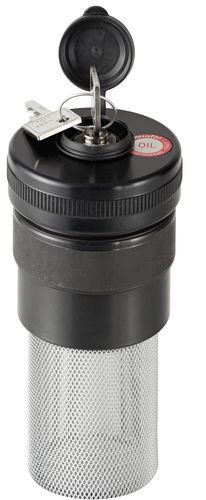

TRBF/ZK Hermetic filling plug with key lock

Description
Made of a black-anodized aluminium alloy female cover with internal thread and key lock. It is screwed onto a UNI C30 burnished steel sleeve welded to the machine tank. Supplied with a removable steel cartridge with a filtration degree of 800 microns.

Technical Info - GAS ISO 228
TYPE | CODE OIL | CODE DIESEL | THREAD | d | h | f | p | c | b | l | WEIGHT (g)
TRBF/ZK3G | 1KBRF301 | 1KBRF303 | 2" | 65 | 48 | 57 | 23 | 49 | 64 | 87 | 428

Technical Info - MB METRIC
TYPE | CODE OIL | CODE DIESEL | THREAD | d | h | f | p | c | b | l | WEIGHT (g)
TRBF/ZK4M | 1KBRF401 | 1KBRF403 | 60 x 2 | 65 | 48 | 57 | 23 | 49 | 64 | 87 | 457

Characteristics / technical specifications

• Cover material: aluminium alloy, black anodized
• Cover type: female, internal thread with key lock
• Sleeve: UNI C30 burnished steel sleeve, to be welded onto the machine tank
• Cartridge: removable steel cartridge
• Filtration degree: 800 microns
• Available types and codes: TRBF/ZK3G (CODE OIL 1KBRF301 / CODE DIESEL 1KBRF303), TRBF/ZK4M (CODE OIL 1KBRF401 / CODE DIESEL 1KBRF403)
• Thread options: 2" (GAS ISO 228) and 60 x 2 (MB METRIC)
• Dimensions and weights: see Technical Info tables above for d, h, f, p, c, b, l and weight (g)
