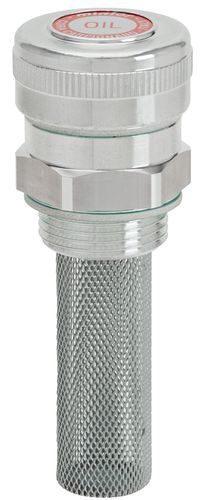

Breather plug TRTCSF/Z

filling

General description

• Breather and filling plug.
• Threaded plug in aluminium alloy without treatment with extractable filter cartridge 800 μ in galvanized-steel.
• The built-in filter has a filtration degree of 40 μ.
• Optionally available with anchor nut for unthreaded hole.
• Suitable for applications on hydraulic units, machine-tools and earth-moving machinery.

Warnings

• The product is not designed to operate in an inverted position.
• Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.

Technical Info - GAS ISO 228
TYPE; CODE; THREAD; FILTER; d; g; f; h; l; c; e; WEIGHT (g)
TRTCSF/Z5G; 1FSFZ502; 1"; 40 μ; 45; 33.3; 14; 42; 82; 25; 40; 163
TRTCSF/Z8G; 1FSFZ802; 2"; 200 μ; 70; 59.4; 17; 53; 113; 49; 70; 543


Characteristics / technical specifications

• Brand: Mintor Srl
• Model: TRTCSF/Z
• Type: breather and filling threaded plug
• Material (plug): aluminium alloy (without surface treatment)
• Extractable filter cartridge: 800 μ, galvanized steel
• Built-in filter filtration degree: 40 μ
• Optional accessory: anchor nut for unthreaded hole
• Applications: hydraulic units, machine-tools, earth-moving machinery
• Design note: not to be used in inverted position; testing/installation inverted is not compliant
• Standard / Threading spec: GAS ISO 228
• Available types: TRTCSF/Z5G (code 1FSFZ502, thread 1", weight 163 g), TRTCSF/Z8G (code 1FSFZ802, thread 2", weight 543 g)
