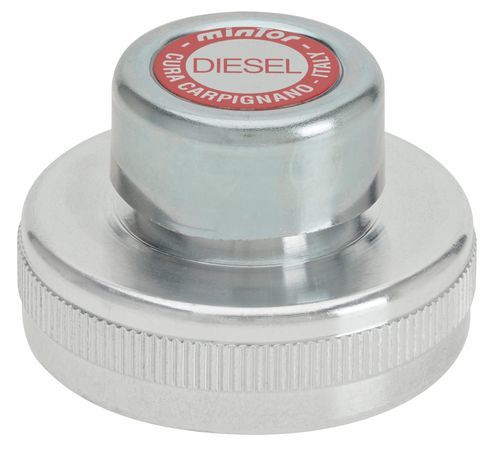

Breather plug TFES/ZF

blanking

Product description
Plug with internal thread in aluminium alloy, without surface treatment by default, designed for installation on sleeves with male thread. A galvanized-steel cover and a spherical bronze filter (40 microns) vent internal pressure while preventing ingress of foreign bodies during the intake stroke. Especially suitable for dusty environments and for application on agricultural and construction machinery.

Options
Available on request with anodizing treatment.

Warnings
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with design specifications and may compromise proper operation.

Technical Info - GAS ISO 228
TYPE | CODE OIL | CODE DIESEL | f | d | h | l | D | WEIGHT (g)
TFES/ZF1G | 1WCPF101 | 1WCPF102 | 1" | 30 | 21 | 41 | 40 | 58
TFES/ZF2G | 1WCPF201 | 1WCPF202 | 1" 1/2 | 38 | 21 | 41 | 55 | 128
TFES/ZF3G | 1WCPF301 | 1WCPF302 | 2" | 38 | 21 | 41 | 65 | 142

Technical Info - MB METRIC
TYPE | CODE OIL | CODE DIESEL | f | d | h | l | D | WEIGHT (g)
TFES/ZF4M | 1WCPF401 | 1WCPF402 | 60 x 2 | 38 | 21 | 41 | 65 | 282

Characteristics / technical specifications

• Model: TFES/ZF
• Function: Female threaded plug with breather
• Material: Aluminium alloy body (no surface treatment by default)
• Cover: Galvanized-steel cover
• Filter: Spherical bronze filter, 40 microns
• Intended application: For sleeves with male thread; especially suitable for dusty environments, agricultural and construction machinery
• Optional: Anodizing treatment available on request
• Operating restriction: Not designed to operate in inverted position; installation/testing inverted may compromise operation
• Standards/technical tables provided: GAS ISO 228 and MB METRIC sizing and weight tables (see table entries above)
