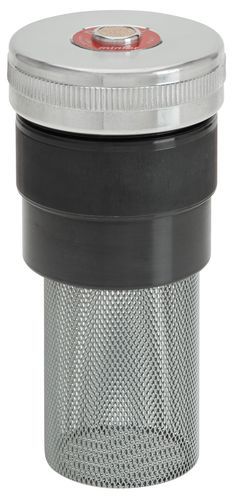

Breather plug TRBFS

filling

Description
Filling plug with breather TRBFS for machine covers and tanks. Female cover in aluminium alloy with internal thread, fitted with a 40 microns spherical bronze filter. It screws onto a UNI C30 burnished steel sleeve welded to the machine cover or tank and includes an extractable steel cartridge with 800 microns filtration.

Key features

• Model: TRBFS
• Function: filling plug with breather
• Female cover material: aluminium alloy (no surface treatment)
• Internal filtration: 40 microns spherical bronze filter
• Sleeve: UNI C30 burnished steel sleeve for welding on machine cover or tank
• Cartridge: extractable steel cartridge, 800 microns
• Optional finish: anodizing available on request
• Installation limitation: not designed to operate in inverted position
• Available thread/types and weights: see technical tables below (TYPE rows)

Installation note
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.

Technical Info - GAS ISO 228
TYPE | CODE OIL | CODE DIESEL | THREAD | d | h | p | l | c | f | WEIGHT (g)
TRBFS1G | 1SBSF102 | 1SBSF103 | 1" | 40 | 35 | 15 | 60 | 25 | 30 | 107
TRBFS2G | 1SBSF202 | 1SBSF203 | 1" 1/2 | 55 | 39 | 15 | 85 | 40 | 45 | 198
TRBFS3G | 1SBSF302 | 1SBSF303 | 2" | 65 | 47 | 24 | 85 | 50 | 57 | 438

Technical Info - MB METRIC
TYPE | CODE OIL | CODE DIESEL | THREAD | d | h | p | l | c | f | WEIGHT (g)
TRBFS4M | 1SBSF402 | 1SBSF403 | 60 x 2 | 65 | 47 | 24 | 85 | 50 | 57 | 441
